072389 DODGE - SF4S-S2-111R

Brand - DODGE
Item Number - 072389 DODGE - SF4S-S2-111R
Category - 4-Bolt Steel S-2000-HD Flange (Non-Expansion)
Shaft Size (inch) - 1.6875
Description - SF4S-S2-111R

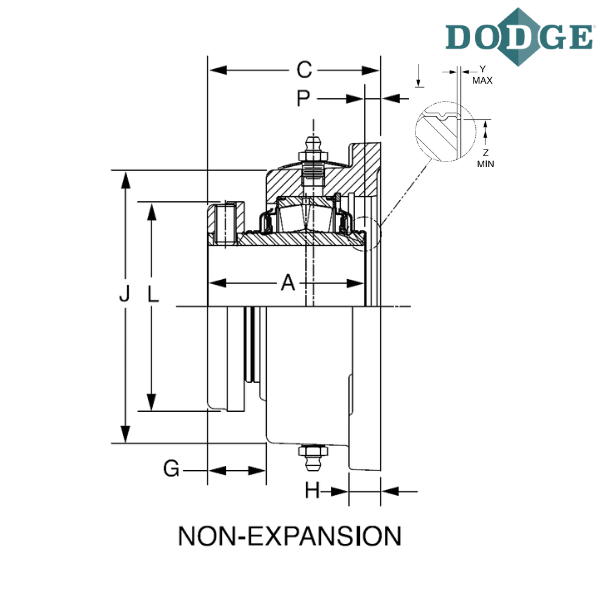

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 5.37
Thickness (C) inch - 2.87
Bolt Center to Center Length (D) inch - 3.89
Bolt Diameter (F) inch - 0.5
G (inch) - 0.77
H (inch) - 0.88
J (inch) - 4.41
K (inch) - 5.5
L (inch) - 3.19
N (inch) - 2.62
P (inch) - 0.2
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
