072384 DODGE - SFCN-IP-407RE

Brand - DODGE
Item Number - 072384 DODGE - SFCN-IP-407RE
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4.4375
Description - SFCN-IP-407RE

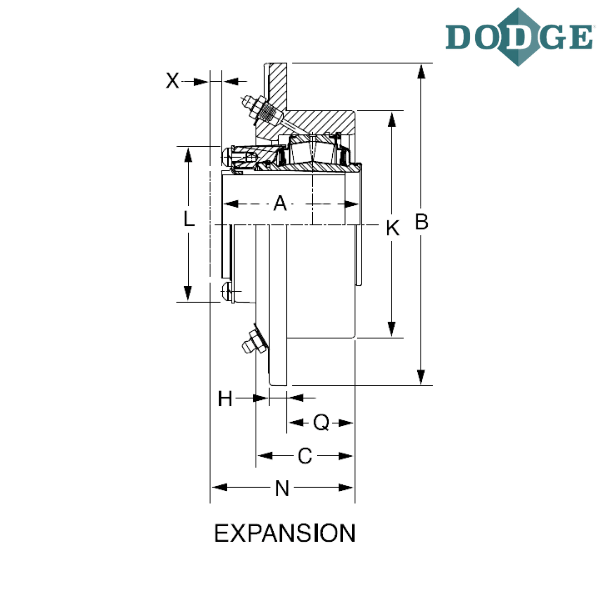

Length Through Bore (A) inch - 5.23
Overall Length (B) inch - 13.5
C (inch) - 3.8
Bolt to Bolt Distance (D) inch - 5.89
Bolt Circle (DD) inch - 11.75
F-Bolt Diameter (inch) - 0.75 **
H (inch) - 1.01
Pilot Diameter (K)* inch - 10.25
L (inch) - 6.34
M (inch) - 3/4 - 10
N (inch) - 5.41
Pilot Depth (Q) inch - 1.9
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”
** 6 holes, equally spaced

*** Images are for representation purposes only
