072366 DODGE - SFCN-IP-115RE

Brand - DODGE
Item Number - 072366 DODGE - SFCN-IP-115RE
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.9375
Description - SFCN-IP-115RE

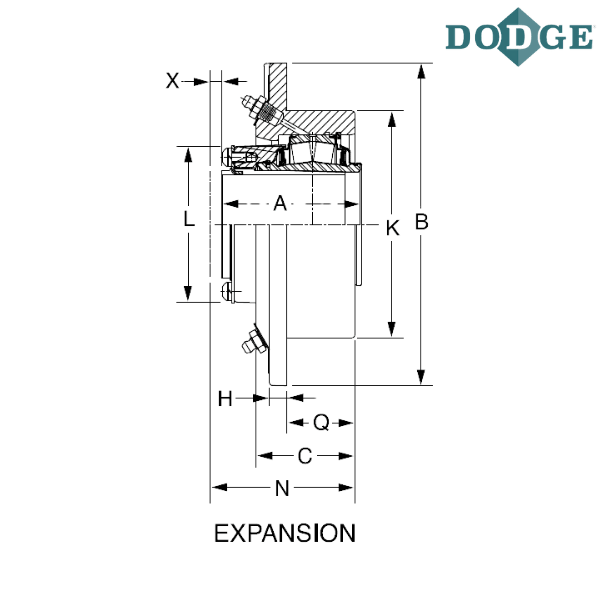

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 6.38
C (inch) - 2.1
Bolt to Bolt Distance (D) inch - 3.8
Bolt Circle (DD) inch - 5.38
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.63
Pilot Diameter (K)* inch - 4.5
L (inch) - 3.28
M (inch) - 7/16 - 14
N (inch) - 3.05
Pilot Depth (Q) inch - 1.06
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”

** Images are for representation purposes only
