072362 DODGE - SFCN-IP-107RE

Brand - DODGE
Item Number - 072362 DODGE - SFCN-IP-107RE
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.4375
Description - SFCN-IP-107RE

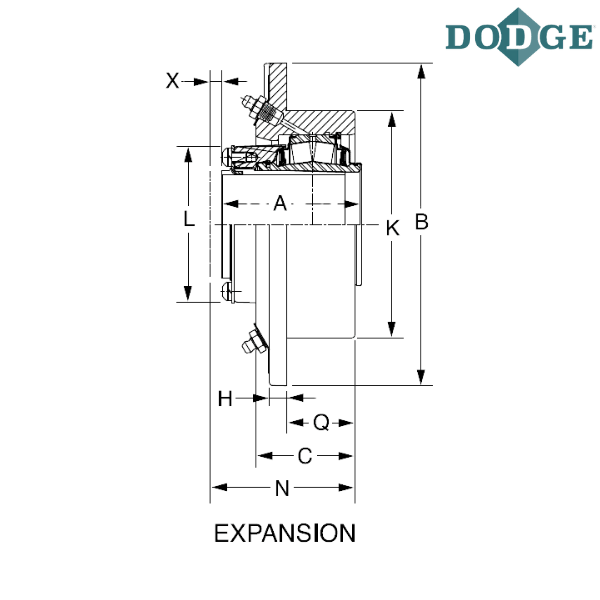

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 5.25
C (inch) - 1.93
Bolt to Bolt Distance (D) inch - 3.09
Bolt Circle (DD) inch - 4.38
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
Pilot Diameter (K)* inch - 3.625
L (inch) - 2.72
M (inch) - 7/16 - 14
N (inch) - 2.78
Pilot Depth (Q) inch - 0.94
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”

** Images are for representation purposes only
