072343 DODGE - SFCN-IP-200R

Brand - DODGE
Item Number - 072343 DODGE - SFCN-IP-200R
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2
Description - SFCN-IP-200R

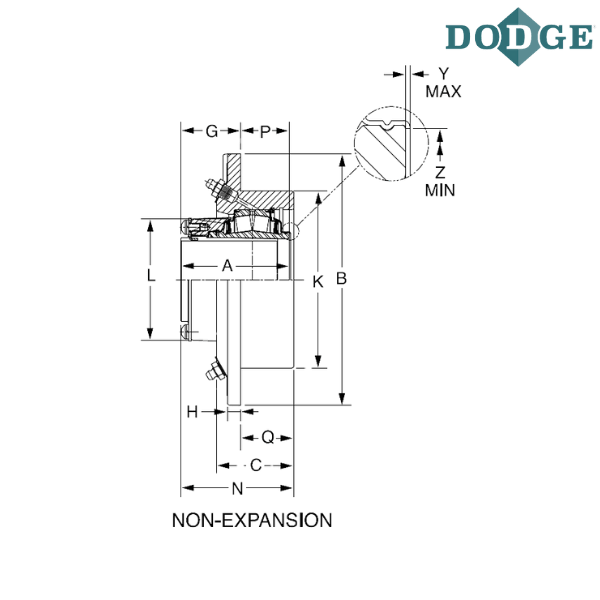

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 6.38
C (inch) - 2.1
Bolt to Bolt Distance (D) inch - 3.8
Bolt Circle (DD) inch - 5.38
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.99
H (inch) - 0.63
Pilot Diameter (K)* inch - 4.5
L (inch) - 3.28
M (inch) - 7/16 - 14
N (inch) - 3.05
P (inch) - 0.88
Pilot Depth (Q) inch - 1.06
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000” / -0.002”

** Images are for representation purposes only
