072322 DODGE - SFC-IP-208RE

Brand - DODGE
Item Number - 072322 DODGE - SFC-IP-208RE
Category - Steel IMPERIAL-HD Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.5
Description - SFC-IP-208RE

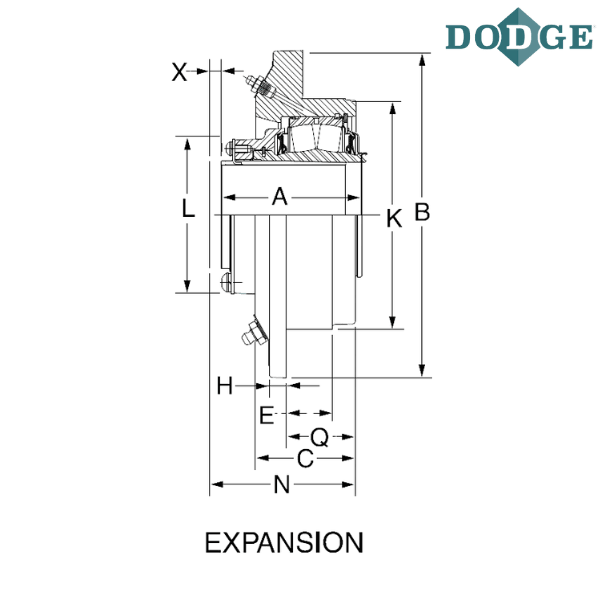

Length Through Bore (A) inch - 3.43
B (inch) - 7.63
C (inch) - 2.66
Bolt to Bolt Distance (D) inch - 4.6
Bolt Circle (DD) inch - 6.5
Bolt Diameter (F) inch - 0.5
H (inch) - 0.5
Pilot Diameter (K)* inch - 5.5
L (inch) - 3.8
M (inch) - 1/2-13
N (inch) - 3.61
Q (inch) - 1.75
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”

** Images are for representation purposes only
