072310 DODGE - SFC-IP-106RE

Brand - DODGE
Item Number - 072310 DODGE - SFC-IP-106RE
Category - Steel IMPERIAL-HD Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.375
Description - SFC-IP-106RE

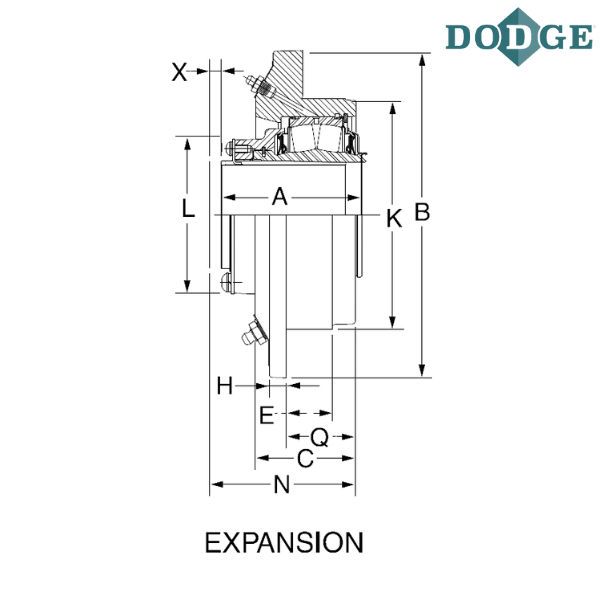

Length Through Bore (A) inch - 2.63
B (inch) - 5.25
C (inch) - 1.94
Bolt to Bolt Distance (D) inch - 3.09
Bolt Circle (DD) inch - 4.38
Bolt Diameter (F) inch - 0.4375
H (inch) - 0.5
Pilot Diameter (K)* inch - 3.625
L (inch) - 2.72
M (inch) - 7/16-14
N (inch) - 2.78
Q (inch) - 1.17
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”

** Images are for representation purposes only
