072293 DODGE - SFC-IP-212R

Brand - DODGE
Item Number - 072293 DODGE - SFC-IP-212R
Category - Steel IMPERIAL-HD Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.75
Description - SFC-IP-212R

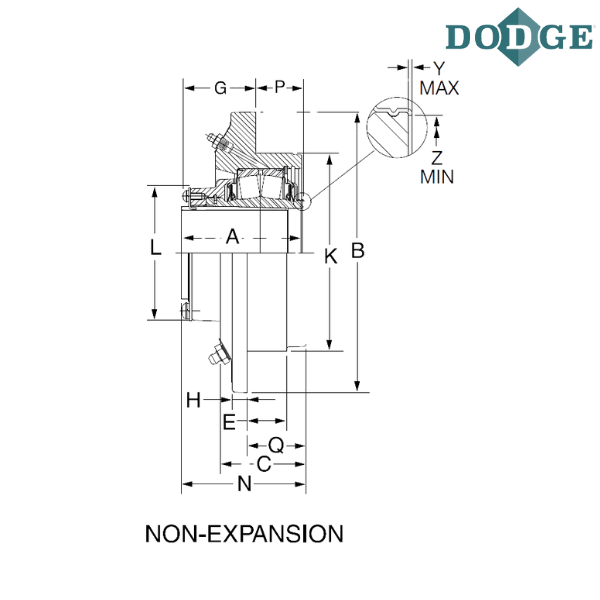

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 8.75
C (inch) - 2.83
Bolt to Bolt Distance (D) inch - 5.3
Bolt Circle (DD) inch - 7.5
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.89
H (inch) - 0.63
Pilot Diameter (K)* inch - 6.375
L (inch) - 4.2
M (inch) - 5/8-11
N (inch) - 3.77
P (inch) - 1.6
Q (inch) - 1.88
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000” / -0.002”

** Images are for representation purposes only
