072286 DODGE - SFC-IP-115R

Brand - DODGE
Item Number - 072286 DODGE - SFC-IP-115R
Category - Steel IMPERIAL-HD Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.9375
Description - SFC-IP-115R

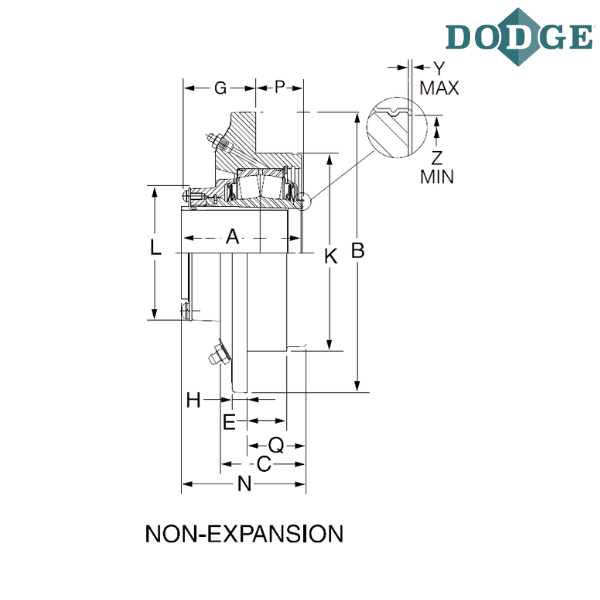

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 6.38
C (inch) - 2.15
Bolt to Bolt Distance (D) inch - 3.8
Bolt Circle (DD) inch - 5.38
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.63
H (inch) - 0.5
Pilot Diameter (K)* inch - 4.5
L (inch) - 3.28
M (inch) - 7/16-14
N (inch) - 3.05
P (inch) - 1.23
Q (inch) - 1.42
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000” / -0.002”

** Images are for representation purposes only
