072207 DODGE - SF4S-IP-114RE

Brand - DODGE
Item Number - 072207 DODGE - SF4S-IP-114RE
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.875
Description - SF4S-IP-114RE

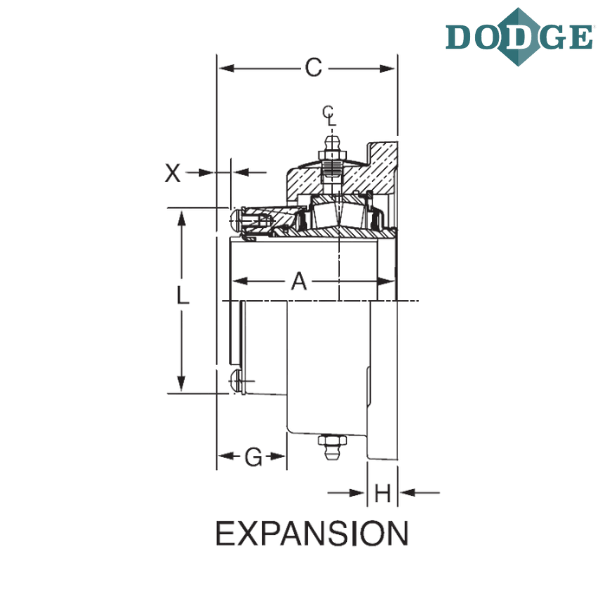

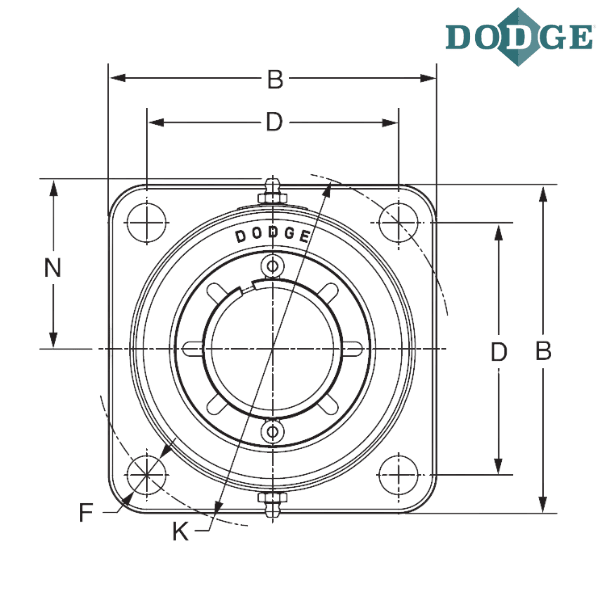

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 5.18
C (inch) - 3.15
Bolt to Bolt Distance (D) inch - 4.07
Bolt Diameter (F) inch - 0.5
G (inch) - 0.91
H (inch) - 0.91
J (inch) - 4.66
K (inch) - 5.75
L (inch) - 3.28
N (inch) - 2.75
Total Expansion (X) inch - 0.2188
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

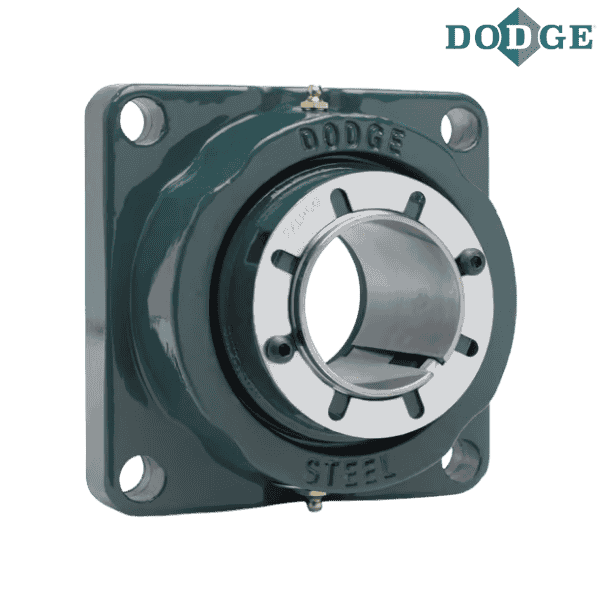

** Images are for representation purposes only
