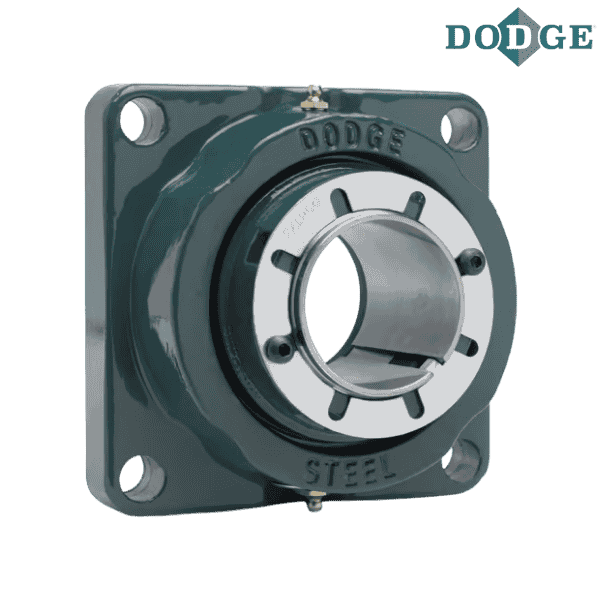

072183 DODGE - SF4S-IP-204R

Brand - DODGE
Item Number - 072183 DODGE - SF4S-IP-204R
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.25
Description - SF4S-IP-204R

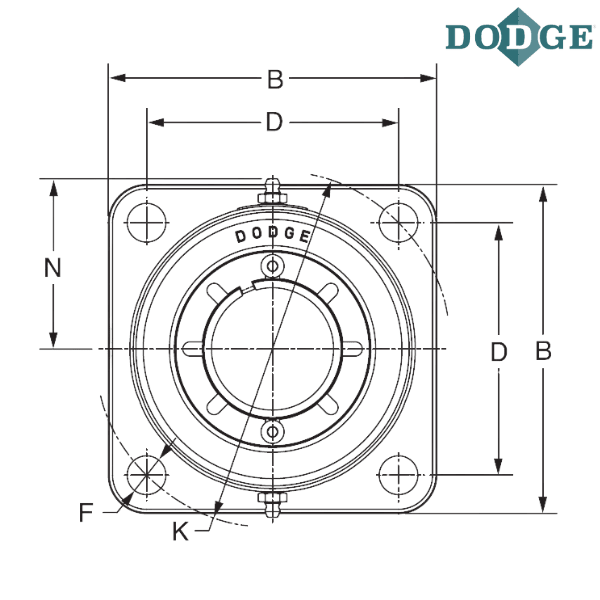

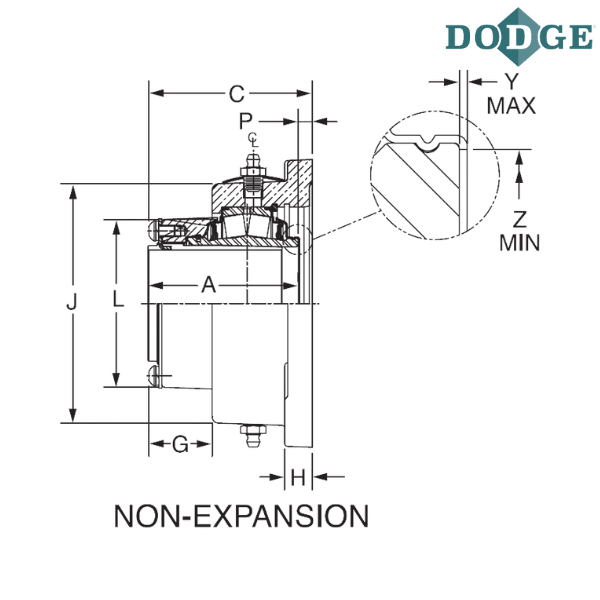

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 5.87
C (inch) - 3.26
Bolt to Bolt Distance (D) inch - 4.51
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.93
H (inch) - 0.75
J (inch) - 5.03
K (inch) - 6.38
L (inch) - 3.5
N (inch) - 2.93
P (inch) - 0.23
Y (inch) - 0.02
Z (inch) - 2.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
