071976 DODGE - SEP4B-S2-407RE

Brand - DODGE
Item Number - 071976 DODGE - SEP4B-S2-407RE
Category - 4-Bolt Steel S2000-HD Pillow Block With Type E Dimensions (Expansion)
Shaft Size (inch) - 4.4375
Description - SEP4B-S2-407RE

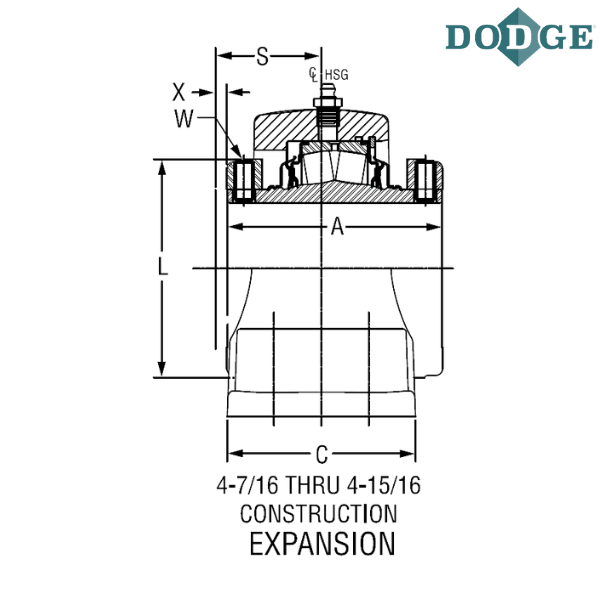

Length Through Bore (A) inch - 6.53
Overall Length (B) inch - 16.13
Width (C) inch - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 11.88
Bolt to Bolt Maximum Distance (D max) inch - 14.5
E (inch) - 2.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.19
H (inch) - 2.75
Overall Height (J) inch - 9.67
L (inch) - 6.45
Base to Center Height (M) inch - 4.75
S (inch) - 3.66
Total Expansion (X) inch - 0.375
Set Screw Size (inch) - 0.625
S/S Torque in/lbs - 1325
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
