071956 DODGE - SEP2B-S2-203RE

Brand - DODGE
Item Number - 071956 DODGE - SEP2B-S2-203RE
Category - 2-Bolt Steel S-2000-HD Pillow Block With Type E Dimensions (Expansion)
Shaft Size (inch) - 2.1875
Description - SEP2B-S2-203RE

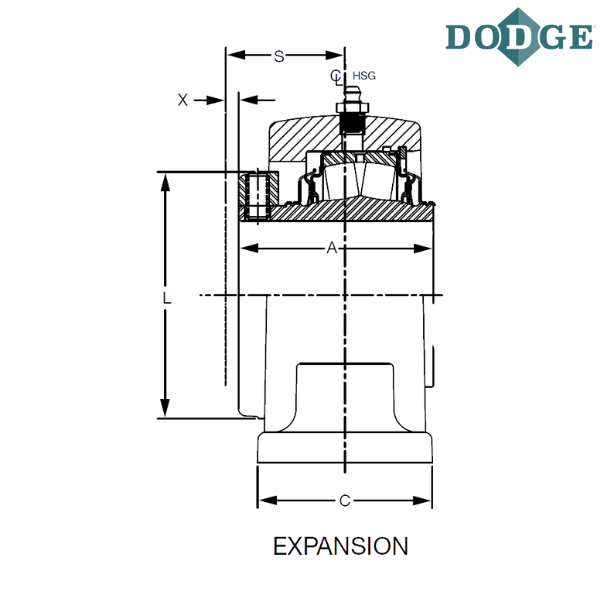

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 9.63
Width (C) inch - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.45
H (inch) - 1.5
Overall Height (J) inch - 5
L (inch) - 3.5
Base to Center Height (M) inch - 2.5
S (inch) - 1.88
Total Expansion (X) inch - 0.25
Set Screw Size (inch) - 3/8-16
S/S Torque in/lbs - 290
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
