071925 DODGE - SEP4B-IP-208RE

Brand - DODGE
Item Number - 071925 DODGE - SEP4B-IP-208RE
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.5
Description - SEP4B-IP-208RE

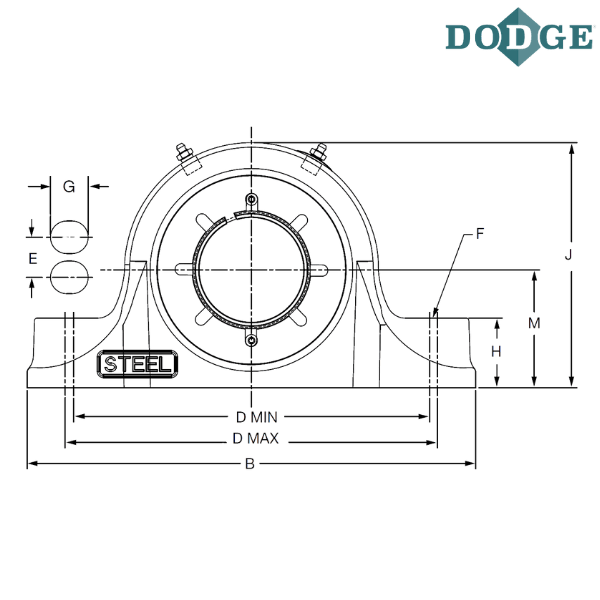

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 10.25
Width (C) inch - 3.25
Bolt to Bolt Minimum Distance (D min) inch - 7.13
Bolt to Bolt Maximum Distance (D max) inch - 8.75
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.57
H (inch) - 1.63
Overall Height (J) inch - 5.71
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
S (inch) - 2.21
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

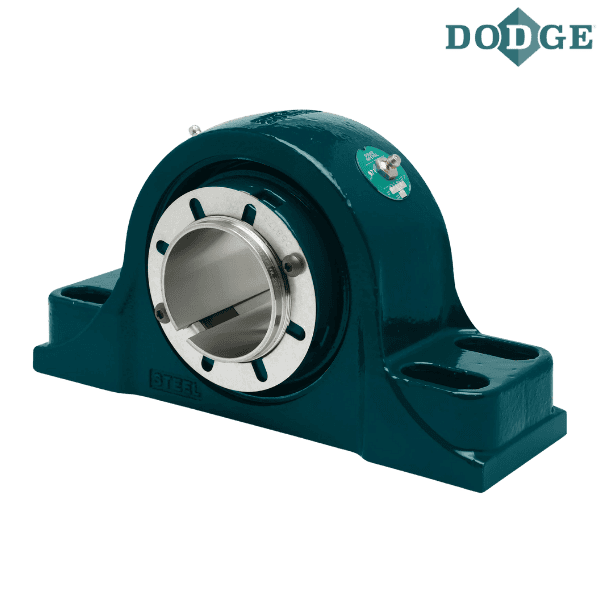

** Images are for representation purposes only
