071922 DODGE - SEP4B-IP-500R

Brand - DODGE
Item Number - 071922 DODGE - SEP4B-IP-500R
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 5
Description - SEP4B-IP-500R

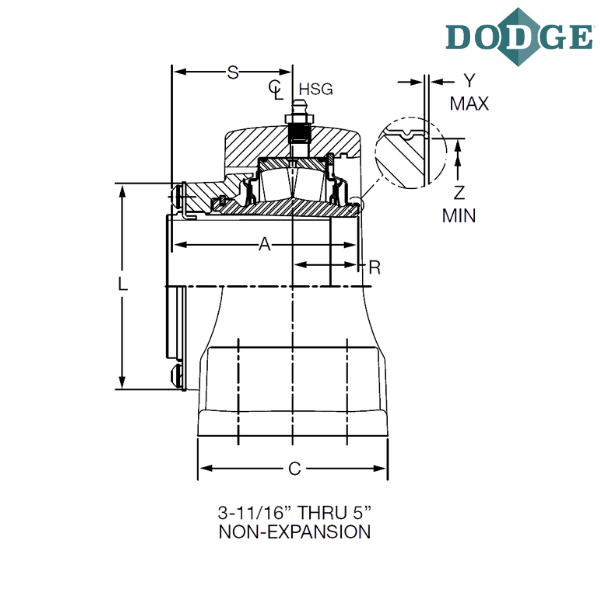

Length Through Bore (A) inch - 5.98

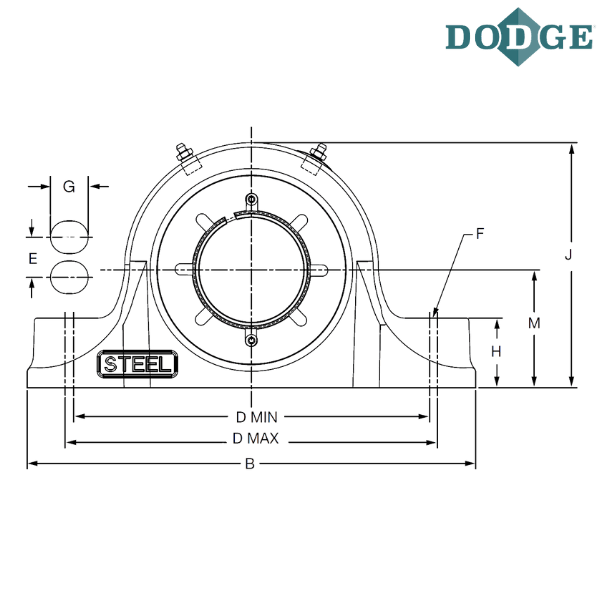

Overall Length (B) inch - 17.5
Width (C) inch - 5.04
Bolt to Bolt Minimum Distance (D min) inch - 15.13
Bolt to Bolt Maximum Distance (D max) inch - 15.88
E (inch) - 2.88
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.38
H (inch) - 3
Overall Height (J) inch - 11.16
L (inch) - 7.63
Base to Center Height (M) inch - 5.5
R (inch) - 1.93
S (inch) - 4.05
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

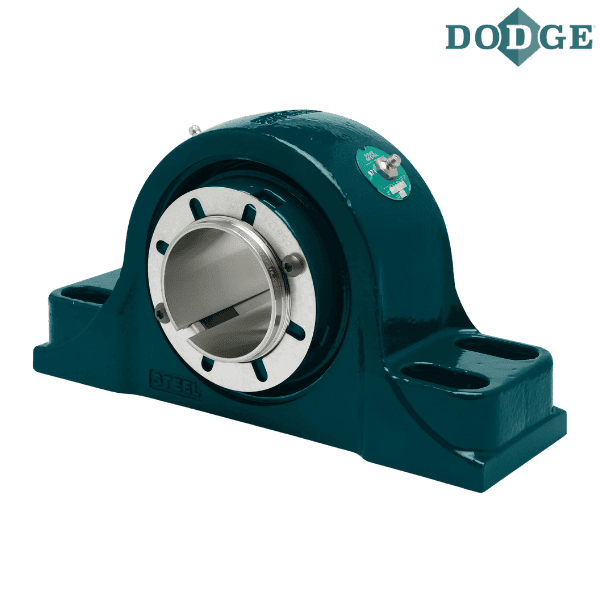

** Images are for representation purposes only
