071919 DODGE - SEP4B-IP-407R

Brand - DODGE
Item Number - 071919 DODGE - SEP4B-IP-407R

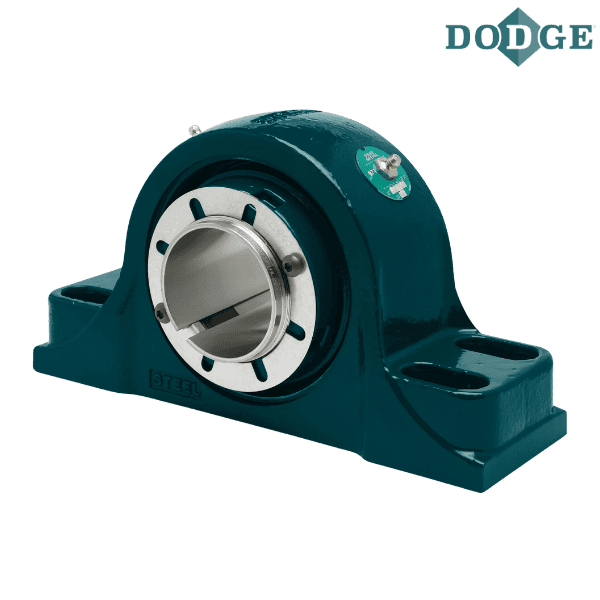

Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4.4375
Description - SEP4B-IP-407R

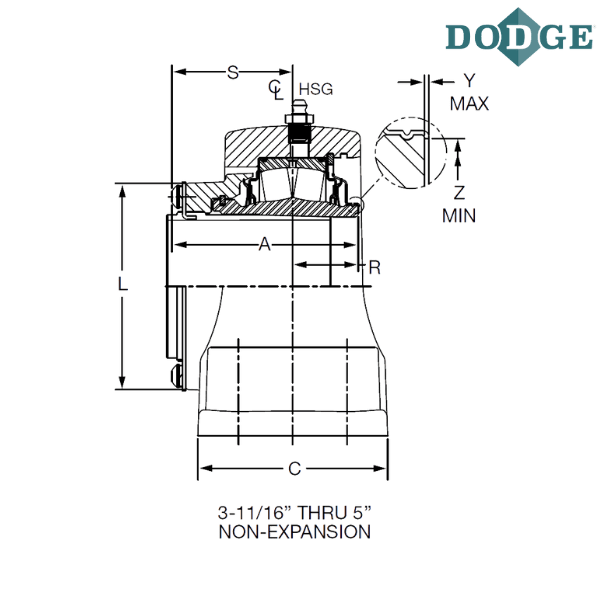

Length Through Bore (A) inch - 5.23

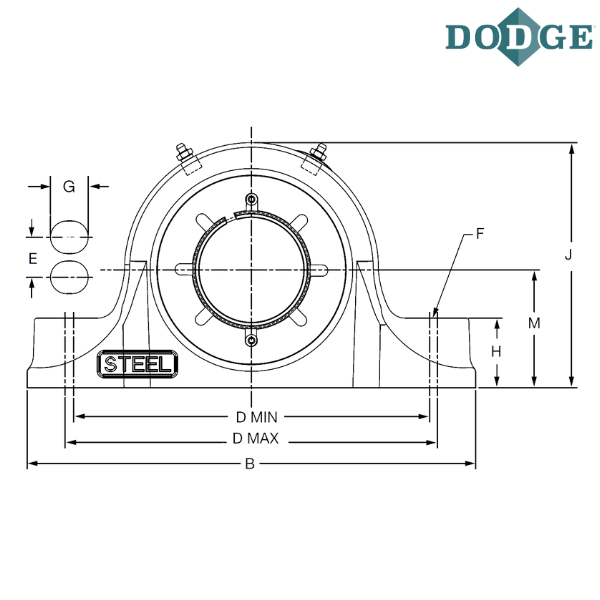

Overall Length (B) inch - 16.13
Width (C) inch - 4.75
Bolt to Bolt Minimum Distance (D min) inch - 11.88
Bolt to Bolt Maximum Distance (D max) inch - 14.5
E (inch) - 2.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.19
H (inch) - 2.75
Overall Height (J) inch - 9.67
L (inch) - 6.44
Base to Center Height (M) inch - 4.75
R (inch) - 1.53
S (inch) - 3.7
Y (inch) - 0.04
Z (inch) - 5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
