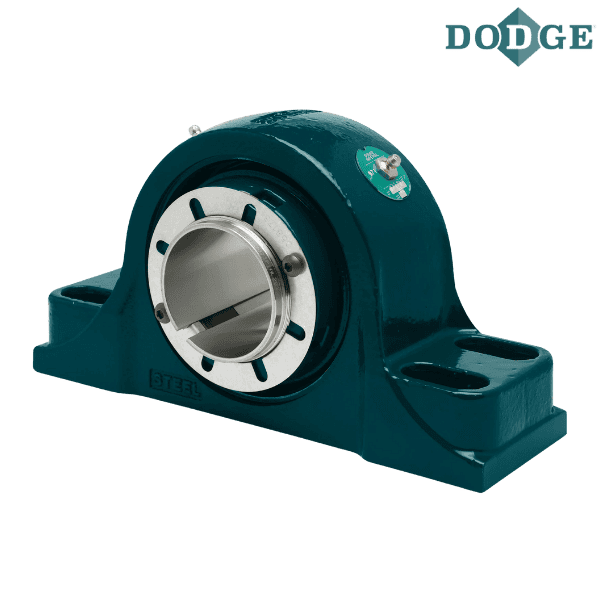

071918 DODGE - SEP4B-IP-400R

Brand - DODGE
Item Number - 071918 DODGE - SEP4B-IP-400R
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4
Description - SEP4B-IP-400R

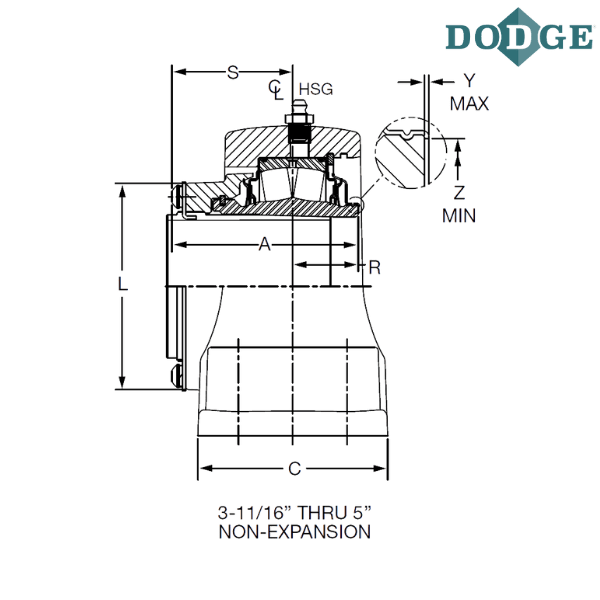

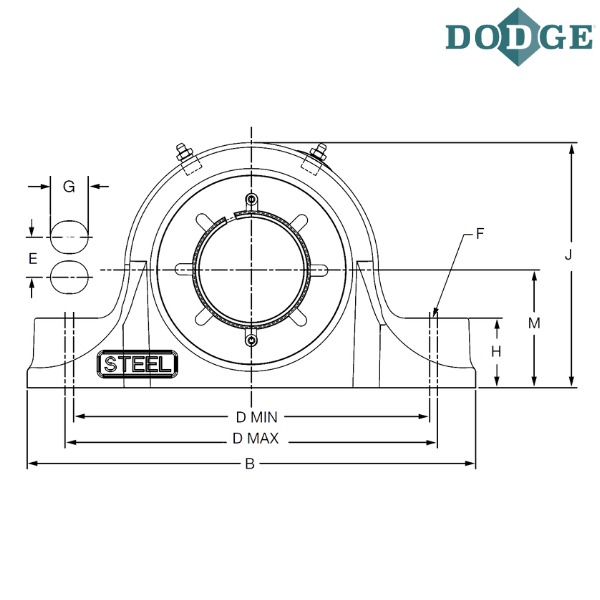

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 14.88
Width (C) inch - 4.31
Bolt to Bolt Minimum Distance (D min) inch - 10.88
Bolt to Bolt Maximum Distance (D max) inch - 13.38
E (inch) - 2.25
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.13
H (inch) - 2.44
Overall Height (J) inch - 8.7
L (inch) - 5.56
Base to Center Height (M) inch - 4.25
R (inch) - 1.7
S (inch) - 3
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
