071916 DODGE - SEP4B-IP-308R

Brand - DODGE
Item Number - 071916 DODGE - SEP4B-IP-308R
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.5
Description - SEP4B-IP-308R

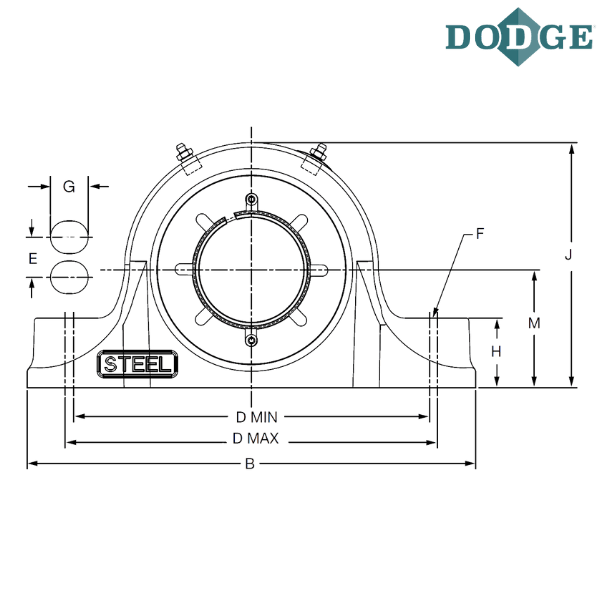

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 13.63
Width (C) inch - 3.75
Bolt to Bolt Minimum Distance (D min) inch - 9.25
Bolt to Bolt Maximum Distance (D max) inch - 11.25
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.88
H (inch) - 2.25
Overall Height (J) inch - 7.69
L (inch) - 5
Base to Center Height (M) inch - 3.75
R (inch) - 1.54
S (inch) - 2.63
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

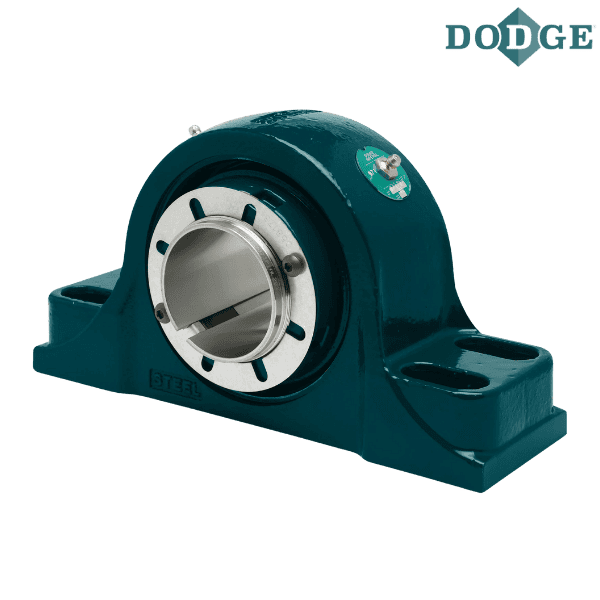

** Images are for representation purposes only
