071910 DODGE - SEP4B-IP-212R

Brand - DODGE
Item Number - 071910 DODGE - SEP4B-IP-212R
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.75
Description - SEP4B-IP-212R

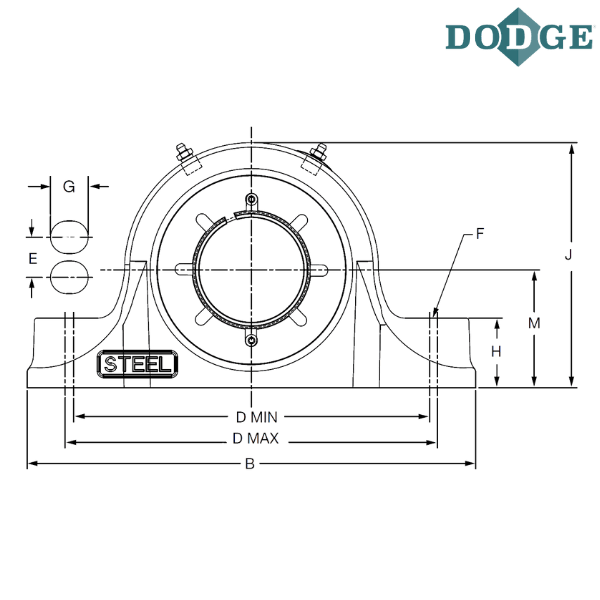

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 10.83
Width (C) inch - 3.38
Bolt to Bolt Minimum Distance (D min) inch - 8
Bolt to Bolt Maximum Distance (D max) inch - 9.6
E (inch) - 2.12
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.56
H (inch) - 1.88
Overall Height (J) inch - 6.32
L (inch) - 4.28
Base to Center Height (M) inch - 3.13
R (inch) - 1.35
S (inch) - 2.15
Y (inch) - 0.03
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

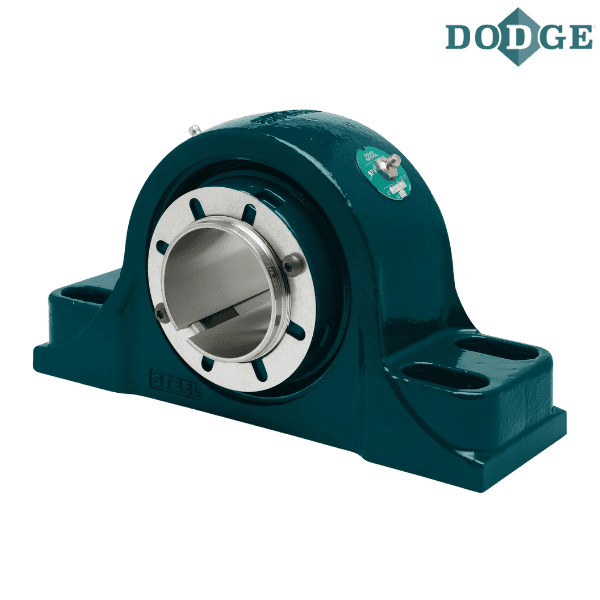

** Images are for representation purposes only
