071901 DODGE - SEP2B-IP-300RE

Brand - DODGE
Item Number - 071901 DODGE - SEP2B-IP-300RE
Category - Steel IMPERIAL-HD Pillow Block 2-Bolt with Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3
Description - SEP2B-IP-300RE

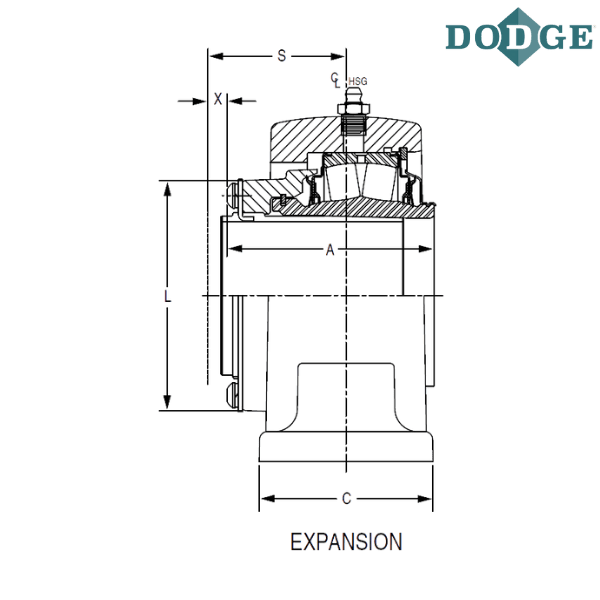

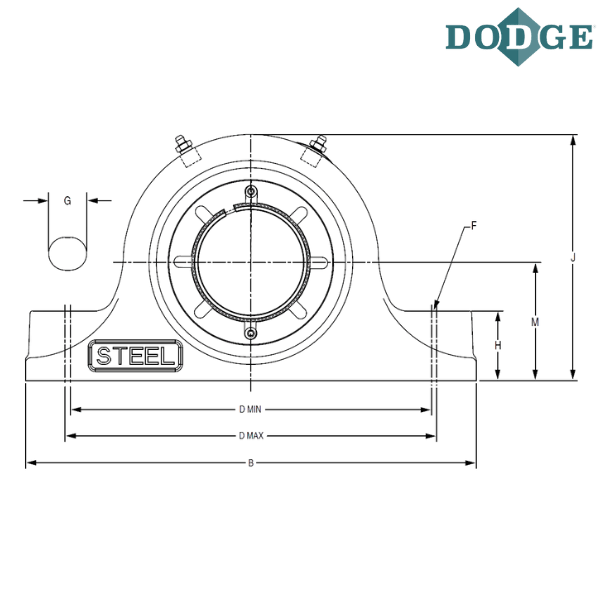

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 11.63
Width (C) inch - 2.91
Bolt to Bolt Minimum Distance (D min) inch - 7.88
Bolt to Bolt Maximum Distance (D max) inch - 9.62
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.75
H (inch) - 1.88
Overall Height (J) inch - 6.32
L (inch) - 4.28
Base to Center Height (M) inch - 3.125
S (inch) - 2.15
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

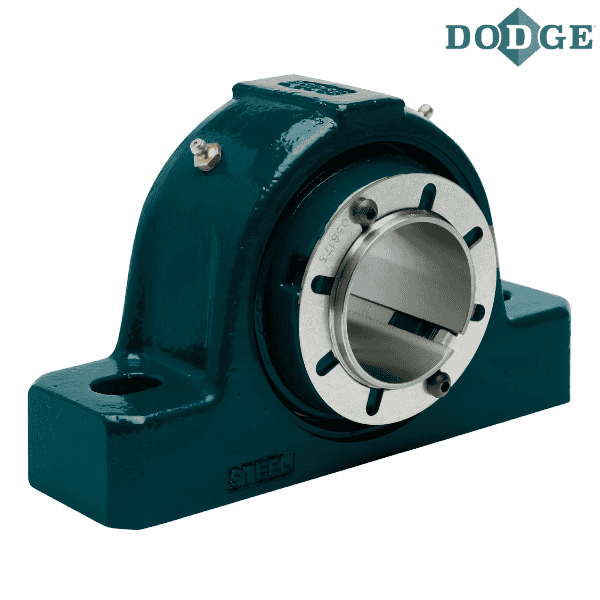

** Images are for representation purposes only
