071803 DODGE - SP2B-S2-315R

Brand - DODGE
Item Number - 071803 DODGE - SP2B-S2-315R
Category - 2-Bolt Steel S-2000-HD Pillow Block (Non-Expansion)
Shaft Size (inch) - 3.9375
Description - SP2B-S2-315R

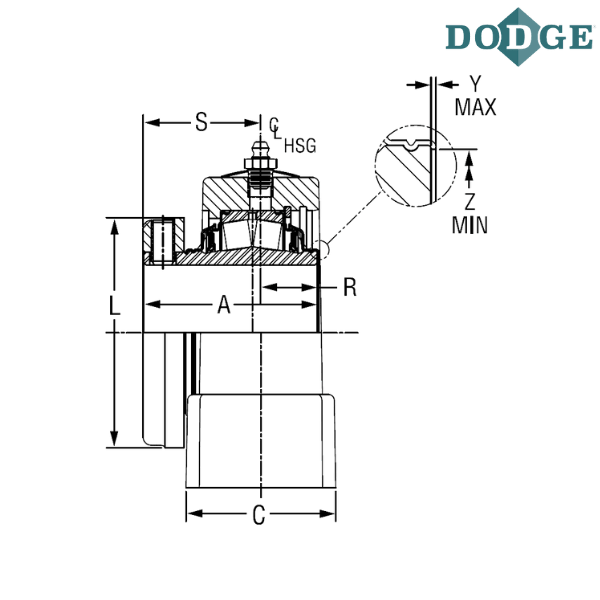

Length Through Bore (A) inch - 4.47
Overall Length (B) inch - 14.25
Width (C) inch - 3.89
Bolt to Bolt Minimum Distance (D min) inch - 10.04
Bolt to Bolt Maximum Distance (D max) inch - 12.6
F-Bolt Diameter (inch) - 1
G (inch) - 2.4
H (inch) - 2.44
Overall Height (J) inch - 8.37
L (inch) - 6
Base to Center Height (M) inch - 4.25
R (inch) - 1.59
S (inch) - 2.91
Y (inch) - 0.025
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
