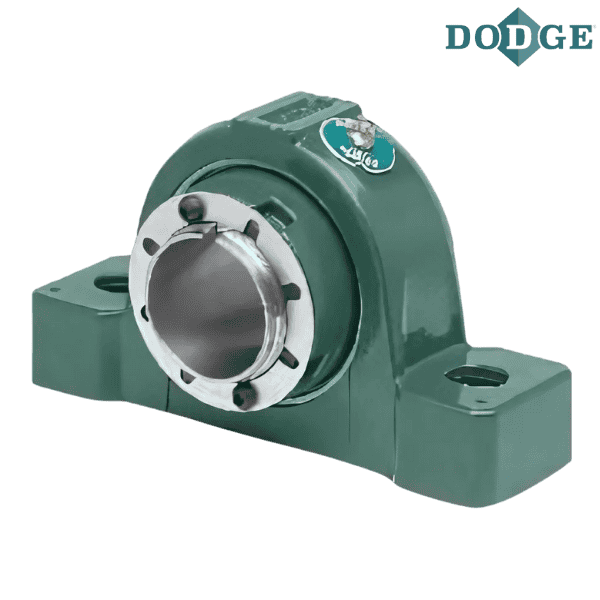

071691 DODGE - SP2B-IP-204RE

Brand - DODGE
Item Number - 071691 DODGE - SP2B-IP-204RE
Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.25
Description - SP2B-IP-204RE

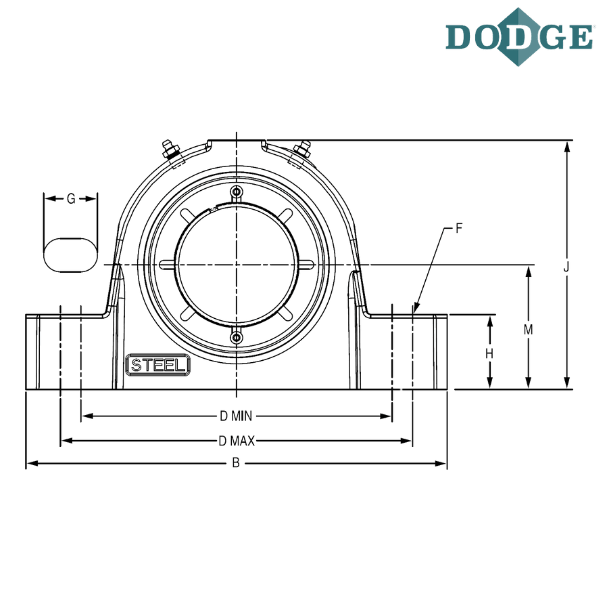

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 8.88
Width (C) inch - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 6.5
Bolt to Bolt Maximum Distance (D max) inch - 7.06
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.04
H (inch) - 1.5
Overall Height (J) inch - 5
L (inch) - 3.5
Base to Center Height (M) inch - 2.5
S (inch) - 2.04

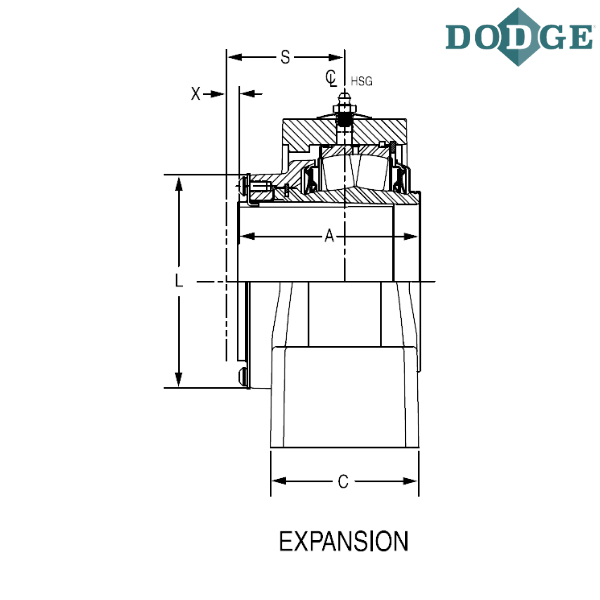

Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
