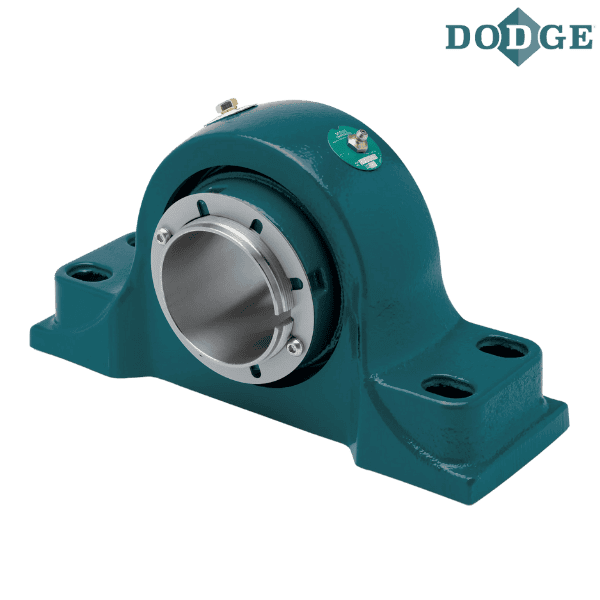

071614 DODGE - EP4B-IP-607R

Brand - DODGE
Item Number - 071614 DODGE - EP4B-IP-607R
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22236
Shaft Size (inch) - 6.4375
Part Name - EP4B-IP-607R

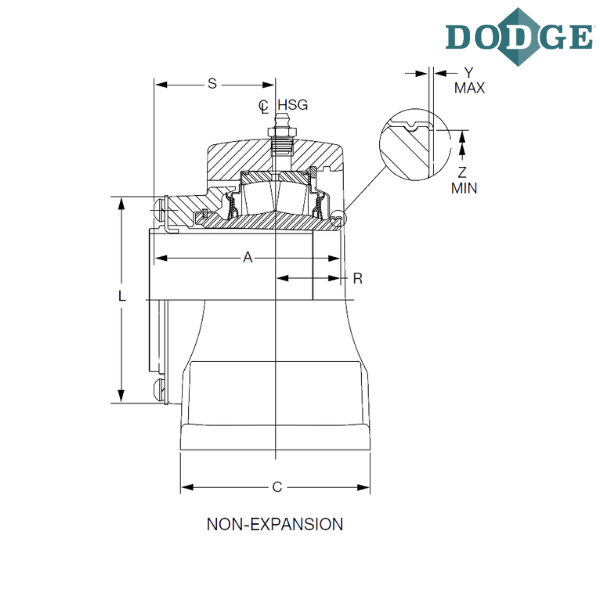

Length Through Bore (A) inch - 7.39

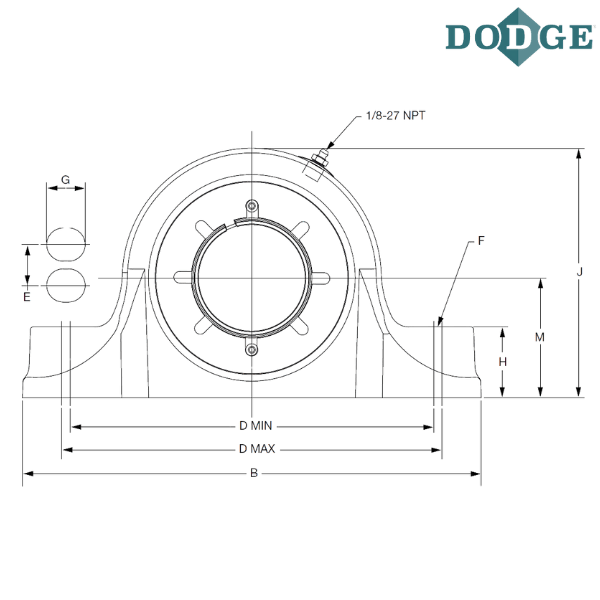

Overall Length (B) inch - 26
Width (C) inch - 7.12
Bolt to Bolt Minimum Distance (D min) inch - 21.25
Bolt to Bolt Maximum Distance (D max) inch - 23.25
E (inch) - 4.62
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 3.69
Overall Height (J) inch - 14.94
L (inch) - 11.41
Base to Center Height (M) inch - 7.5
R (inch) - 2.46
S (inch) - 4.94
Y (inch) - 0.04
Z (inch) - 7.89
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
