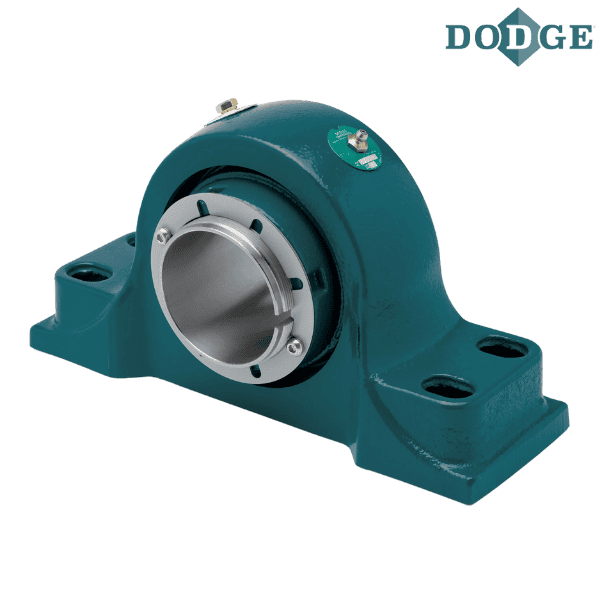

071613 DODGE - EP4B-IP-600R

Brand - DODGE
Item Number - 071613 DODGE - EP4B-IP-600R
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22232
Shaft Size (inch) - 6
Part Name - EP4B-IP-600R

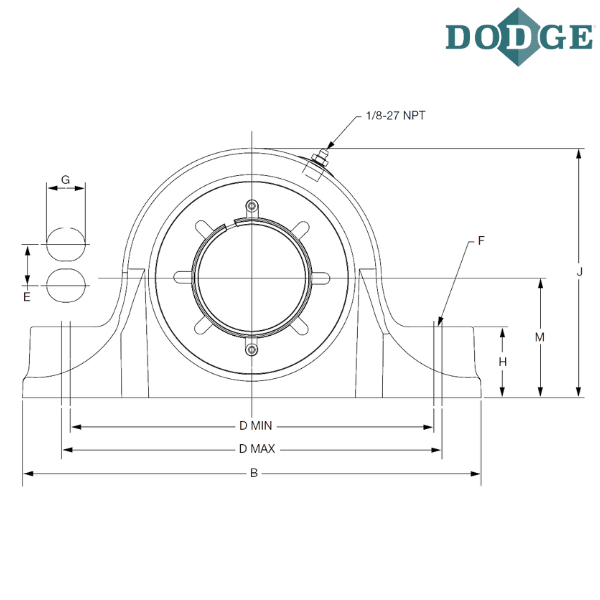

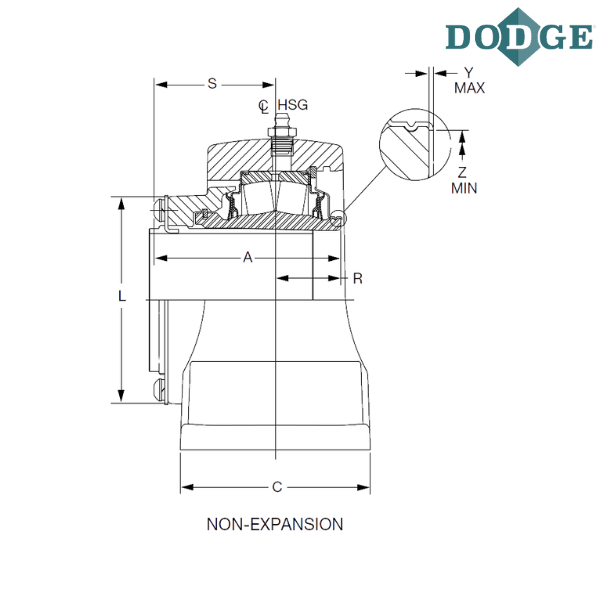

Length Through Bore (A) inch - 7.08
Overall Length (B) inch - 22
Width (C) inch - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 17.38
Bolt to Bolt Maximum Distance (D max) inch - 19.12
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 3.25
Overall Height (J) inch - 13.19
L (inch) - 10.25
Base to Center Height (M) inch - 6.69
R (inch) - 2.66
S (inch) - 4.42
Y (inch) - 0.04
Z (inch) - 7.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
