071578 DODGE - EFC-IP-204R

Brand - DODGE
Item Number - 071578 DODGE - EFC-IP-204R
Category - IMPERIAL - IP Piloted Flange with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22211
Shaft Size (inch) - 2.25
Part Name - EFC-IP-204R
Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 7.63
C (inch) - 2.5
Bolt to Bolt Distance (D) inch - 4.59
Bolt Circle (DD) inch - 6.5
E (inch) - 1
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.88
H (inch) - 0.63
Pilot Diameter (K*) inch - 5.5
L (inch) - 3.88
M (inch) - 1/2-13
N (inch) - 3.44
P (inch) - 1.55
Pilot Depth (Q) inch - 1.56
Y (inch) - 0.03
Z (inch) - 2.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000”, -0.002”

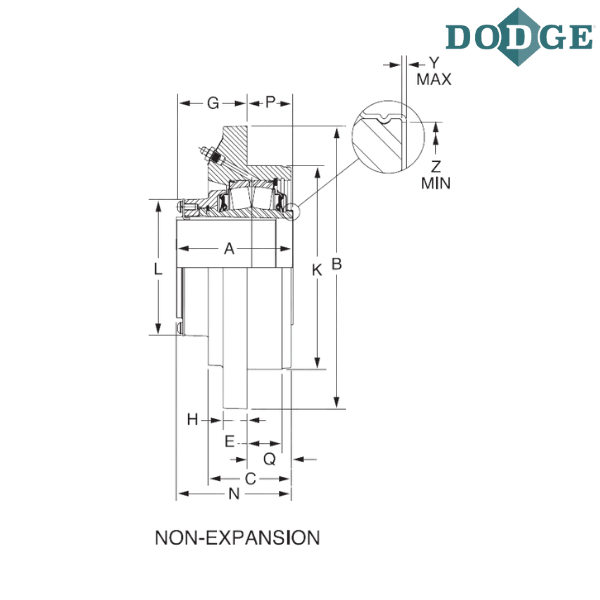

** Images are for representation purposes only
