071433 DODGE - EP4B-S2-207R

Brand - DODGE
Item Number - 071433 DODGE - EP4B-S2-207R
Category - 4-Bolt S-2000 Pillow Block with Type E Dimensions in Trident Seal (Non-Expansion)
Bearing Series - 22213
Shaft Size (inch) - 2.4375
Part Name - EP4B-S2-207R

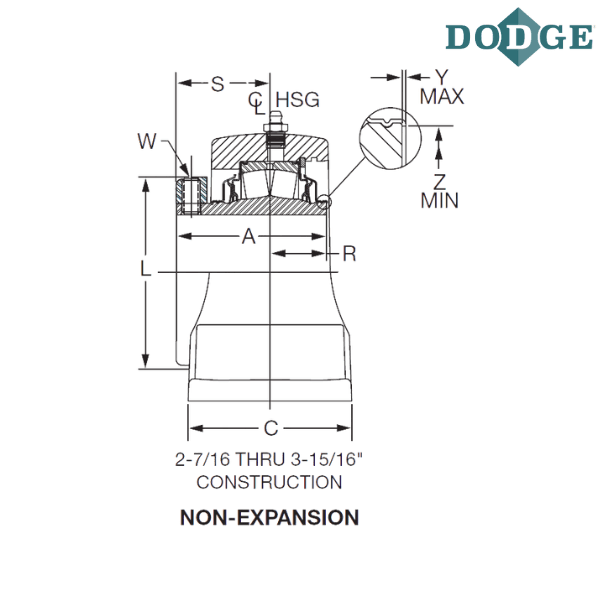

Length Through Bore (A) inch - 3.2
Overall Length (B) inch - 10.5
Width (C) inch - 3.49
Bolt to Bolt Minimum Distance (D min) inch - 8.31
Bolt to Bolt Maximum Distance (D max) inch - 8.69
E (inch) - 1.87
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.87
H (inch) - 1.63
Overall Height (J) inch - 5.72
L (inch) - 4.06
Base to Center Height (M) inch - 2.75
R (inch) - 1.2
S (inch) - 2
Y (inch) - 0.025
Z (inch) - 2.94
Set Screw Size (inch) - 0.375
S/S Torque in/lbs - 290
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
