071421 DODGE - EP2B-S2-307L

Brand - DODGE
Item Number - 071421 DODGE - EP2B-S2-307L
Category - 2-Bolt S-2000 Pillow Block with Type E Dimensions in Labyrinth Seal (Non-Expansion)
Bearing Series - 22218
Shaft Size (inch) - 3.4375
Part Name - EP2B-S2-307L

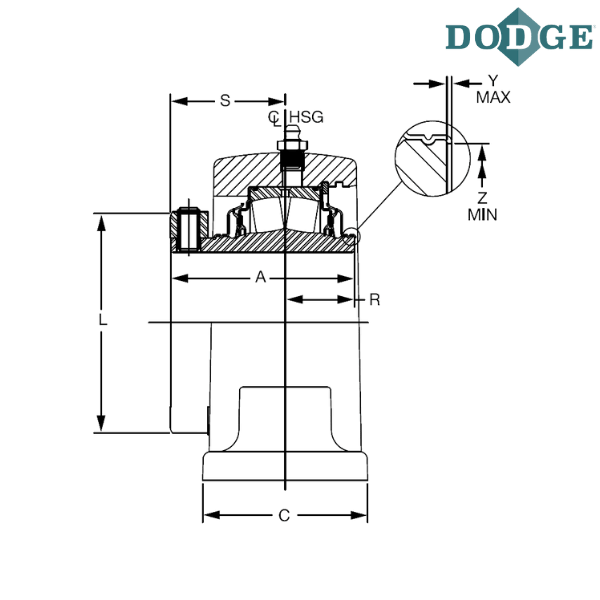

Length Through Bore (A) inch - 4.01
Overall Length (B) inch - 14
C (inch) - 3.49
Bolt to Bolt Minimum Distance (D min) inch - 10.81
Bolt to Bolt Maximum Distance (D max) inch - 11.19
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.19
H (inch) - 2.25
Overall Height (J) inch - 7.69
L (inch) - 5.5
Base to Center Height (M) inch - 3.75
R (inch) - 1.51
S (inch) - 2.5
Y (inch) - 0.025
Z (inch) - 4.05
Set Screw Size (inch) - 1/2-13
S/S Torque in/lbs - 620
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal

** Images are for representation purposes only
