071418 DODGE - EP2B-S2-211L

Brand - DODGE
Item Number - 071418 DODGE - EP2B-S2-211L
Category - 2-Bolt S-2000 Pillow Block with Type E Dimensions in Labyrinth Seal (Non-Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.6875
Part Name - EP2B-S2-211L

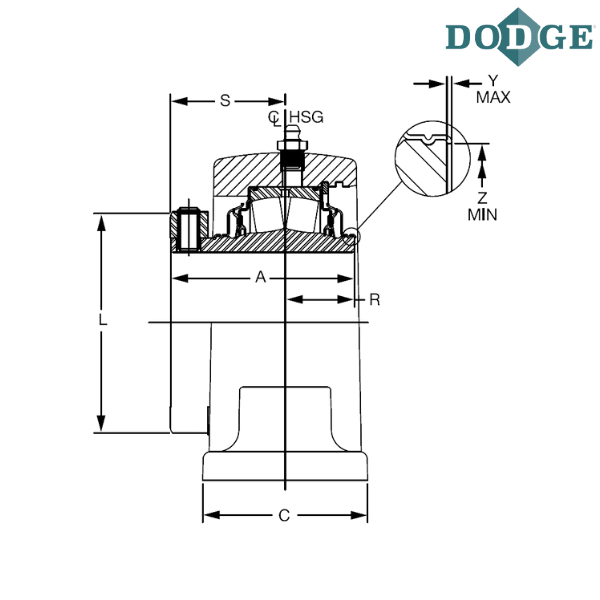

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 12
C (inch) - 2.99
Bolt to Bolt Minimum Distance (D min) inch - 9.31
Bolt to Bolt Maximum Distance (D max) inch - 9.69
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.07
H (inch) - 1.88
Overall Height (J) inch - 6.32
L (inch) - 4.61
Base to Center Height (M) inch - 3.13
R (inch) - 1.34
S (inch) - 2.25
Y (inch) - 0.025
Z (inch) - 3.47
Set Screw Size (inch) - 1/2-13
S/S Torque in/lbs - 620
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal

** Images are for representation purposes only
