071402 DODGE - EP2B-S2-111RE

Brand - DODGE
Item Number - 071402 DODGE - EP2B-S2-111RE
Category - 2-Bolt S-2000 Pillow Block with Type E Dimensions in Trident Seal (Expansion)
Bearing Series - 22209
Shaft Size (inch) - 1.6875
Part Name - EP2B-S2-111RE

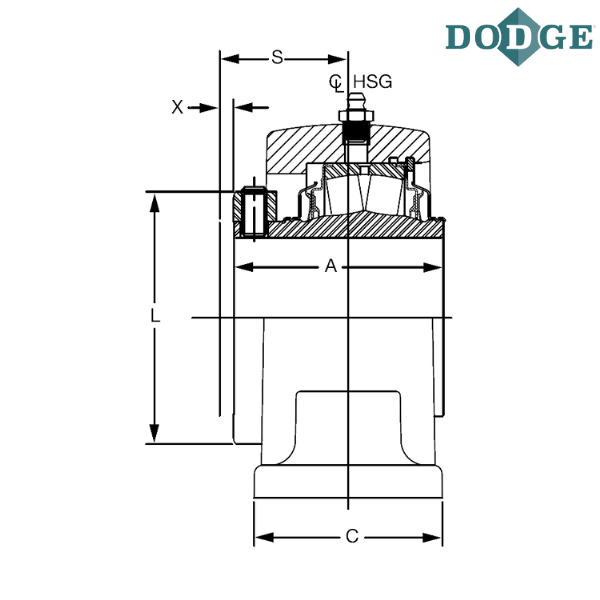

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 7.88
C (inch) - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 6.13
Bolt to Bolt Maximum Distance (D max) inch - 6.38
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 1.25
Overall Height (J) inch - 4.25
L (inch) - 3.01
Base to Center Height (M) inch - 2.13
S (inch) - 1.69
Total Expansion (X) inch - 0.1875
Set Screw Size (inch) - 5/16-18
S/S Torque in/lbs - 165
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
