071385 DODGE - EF4B-IP-315LE

Brand - DODGE
Item Number - 071385 DODGE - EF4B-IP-315LE
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing Series - 22220
Shaft Size (inch) - 3.9375
Part Name - EF4B-IP-315LE

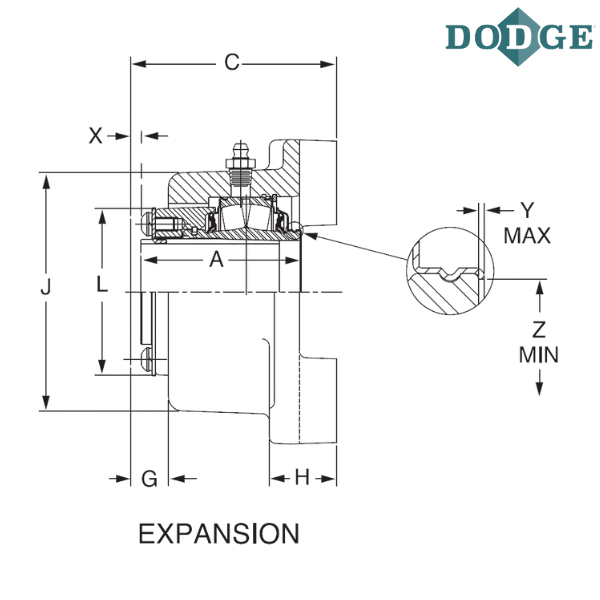

Length Through Bore (A) inch - 4.7
B (inch) - 10.25
C (inch) - 6.73
Bolt to Bolt Distance (D) inch - 7.75
Bolt Circle (DD) inch - 10.96
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.22
H (inch) - 2.12
J (inch) - 8.27
L (inch) - 5.56
N (inch) - 4.58
Total Expansion (X) inch - 0.3125
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
