071369 DODGE - EF4B-IP-112LE

Brand - DODGE
Item Number - 071369 DODGE - EF4B-IP-112LE
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing Series - 22210
Shaft Size (inch) - 1.75
Part Name - EF4B-IP-112LE

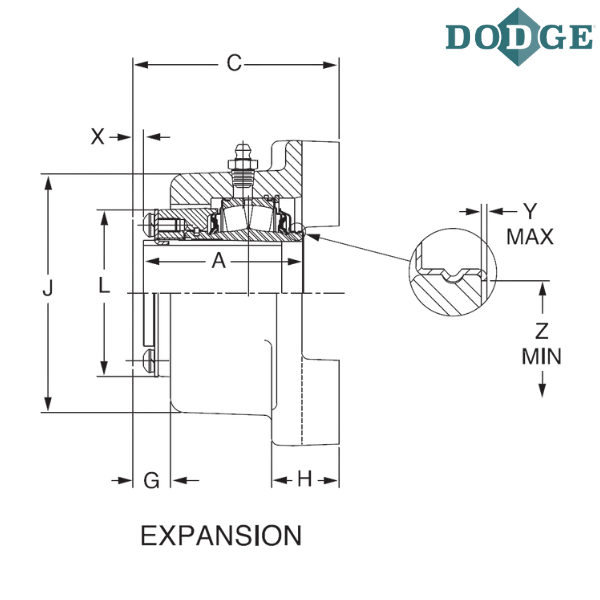

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 5.63
C (inch) - 3.64
Bolt to Bolt Distance (D) inch - 4.38
Bolt Circle (DD) inch - 6.19
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.65
H (inch) - 1.18
J (inch) - 4.36
L (inch) - 3.28
N (inch) - 2.6
Total Expansion (X) inch - 0.21875
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing
