071355 DODGE - EF4B-IP-303L

Brand - DODGE
Item Number - 071355 DODGE - EF4B-IP-303L
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing Series - 22218
Shaft Size (inch) - 3.1875
Part Name - EF4B-IP-303L

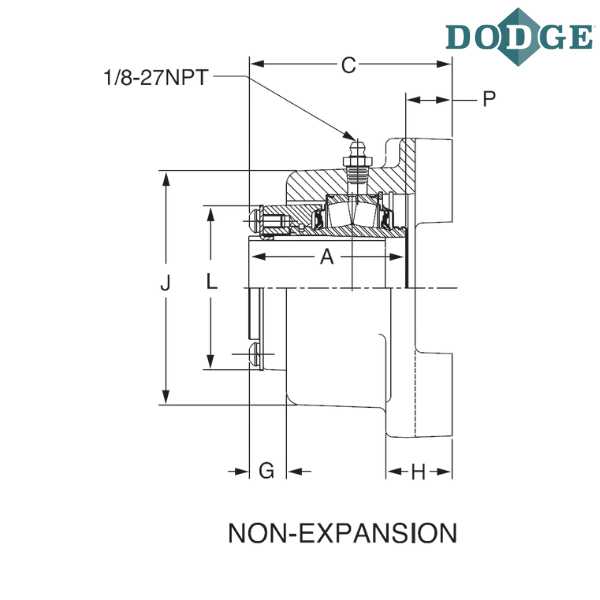

Length Through Bore (A) inch - 4.17
B (inch) - 9.25
C (inch) - 5.4
Bolt to Bolt Distance (D) inch - 7
Bolt Circle (DD) inch - 9.9
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.12
H (inch) - 1.88
J (inch) - 7.44
L (inch) - 5
N (inch) - 4.15
P (inch) - 1.24
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
