071350 DODGE - EF4B-IP-208L

Brand - DODGE
Item Number - 071350 DODGE - EF4B-IP-208L
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing Series - 22213
Shaft Size (inch) - 2.5
Part Name - EF4B-IP-208L

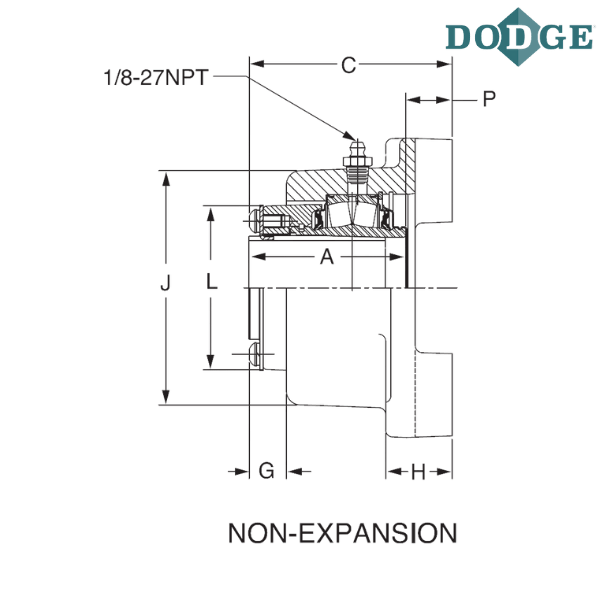

Length Through Bore (A) inch - 3.42
B (inch) - 6.88
C (inch) - 4.41
Bolt to Bolt Distance (D) inch - 5.37
Bolt Circle (DD) inch - 7.6
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.04
H (inch) - 1.5
J (inch) - 5.81
L (inch) - 3.88
N (inch) - 3.32
P (inch) - 0.99
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
