071337 DODGE - EF4B-IP-408RE

Brand - DODGE
Item Number - 071337 DODGE - EF4B-IP-408RE
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing Series - 22222
Shaft Size (inch) - 4.5
Part Name - EF4B-IP-408RE

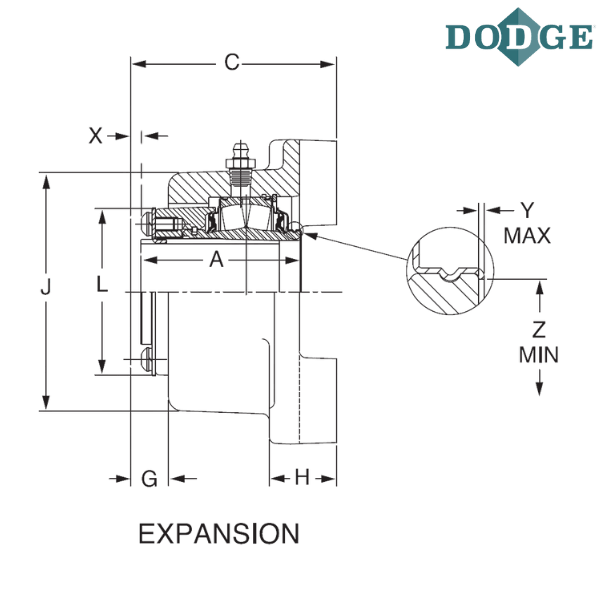

Length Through Bore (A) inch - 5.23
B (inch) - 10.88
C (inch) - 7.12
Bolt to Bolt Distance (D) inch - 8.75
Bolt Circle (DD) inch - 12.37
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.42
H (inch) - 2.43
J (inch) - 9.13
L (inch) - 6.44
N (inch) - 5.01
Total Expansion (X) inch - 0.375
Y (inch) - 0.04
Z (inch) - 5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
