071313 DODGE - EF4B-IP-106RE

Brand - DODGE
Item Number - 071313 DODGE - EF4B-IP-106RE
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing Series - 22208
Shaft Size (inch) - 1.375
Part Name - EF4B-IP-106RE

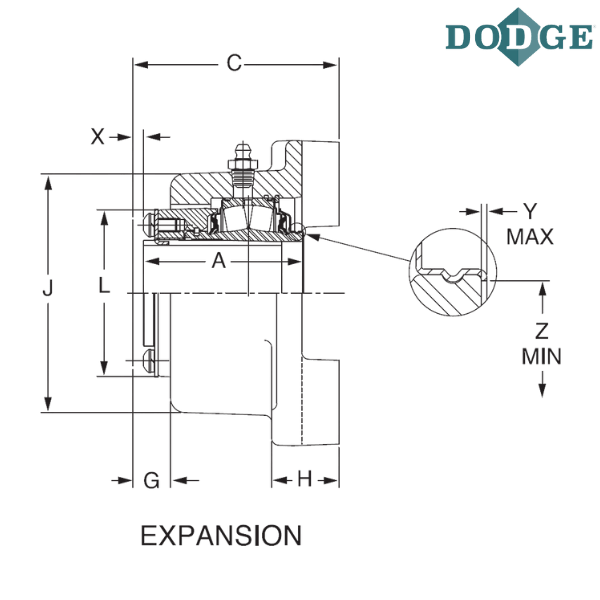

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 4.63
C (inch) - 3.15
Bolt to Bolt Distance (D) inch - 3.5
Bolt Circle (DD) inch - 4.95
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.66
H (inch) - 1.06
J (inch) - 3.88
L (inch) - 2.72
N (inch) - 2.34
Total Expansion (X) inch - 0.15625
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
