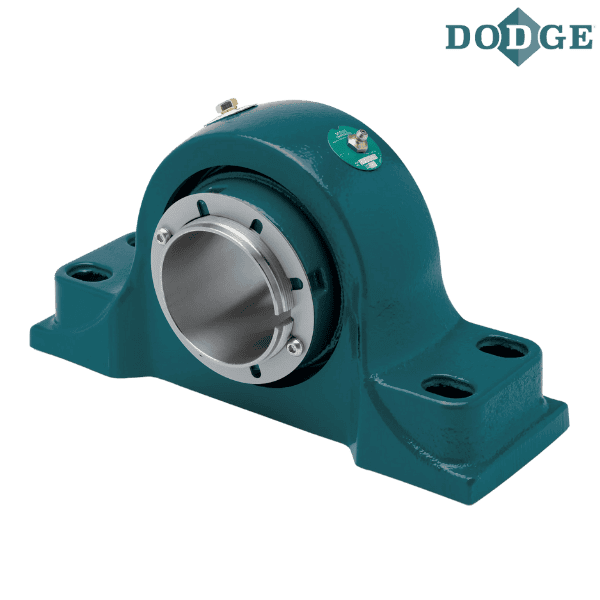

071234 DODGE - EP4B-IP-407RE

Brand - DODGE
Item Number - 071234 DODGE - EP4B-IP-407RE
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22222
Shaft Size (inch) - 4.4375
Part Name - EP4B-IP-407RE

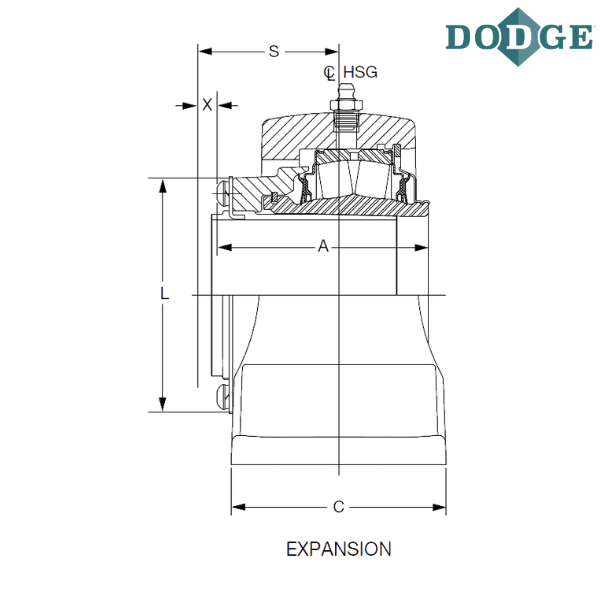

Length Through Bore (A) inch - 5.23

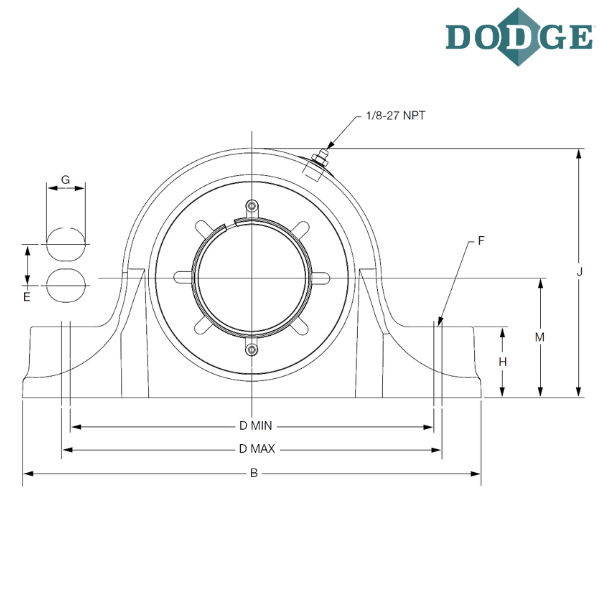

Overall Length (B) inch - 16.63
Width (C) inch - 4.63
Bolt to Bolt Minimum Distance (D min) inch - 13.25
Bolt to Bolt Maximum Distance (D max) inch - 13.75
E (inch) - 2.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.13
H (inch) - 2.75
Overall Height (J) inch - 9.67
L (inch) - 6.44
Base to Center Height (M) inch - 4.75
S (inch) - 3.41
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
