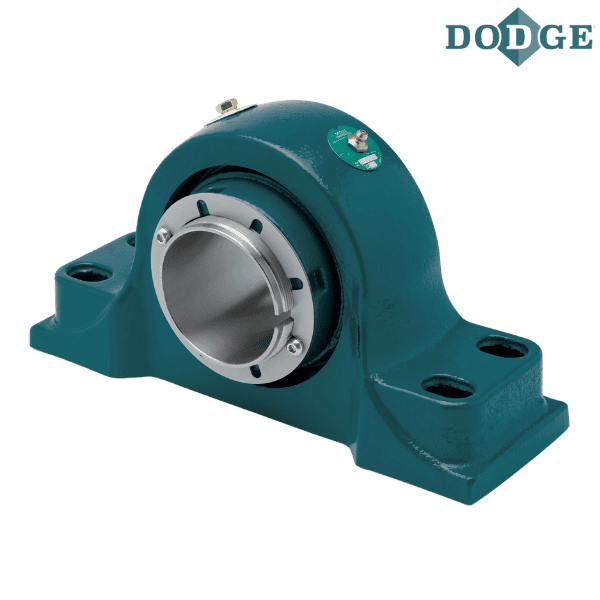

071230 DODGE - EP4B-IP-307RE

Brand - DODGE
Item Number - 071230 DODGE - EP4B-IP-307RE
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - EP4B-IP-307RE

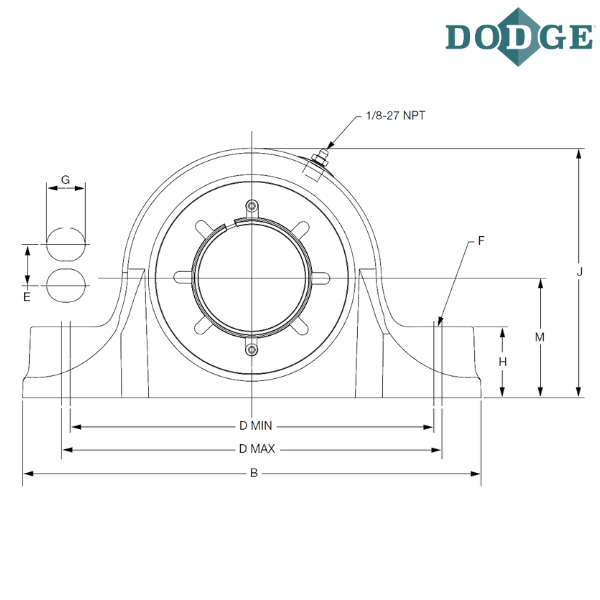

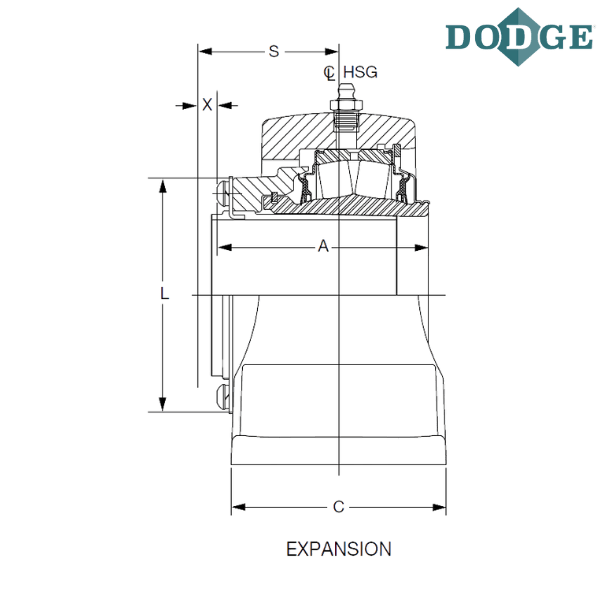

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 13.5
Width (C) inch - 4.49
Bolt to Bolt Minimum Distance (D min) inch - 10.75
Bolt to Bolt Maximum Distance (D max) inch - 11.25
E (inch) - 2.37
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.13
H (inch) - 2.25
Overall Height (J) inch - 7.69
L (inch) - 5
Base to Center Height (M) inch - 3.75
S (inch) - 2.63
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
