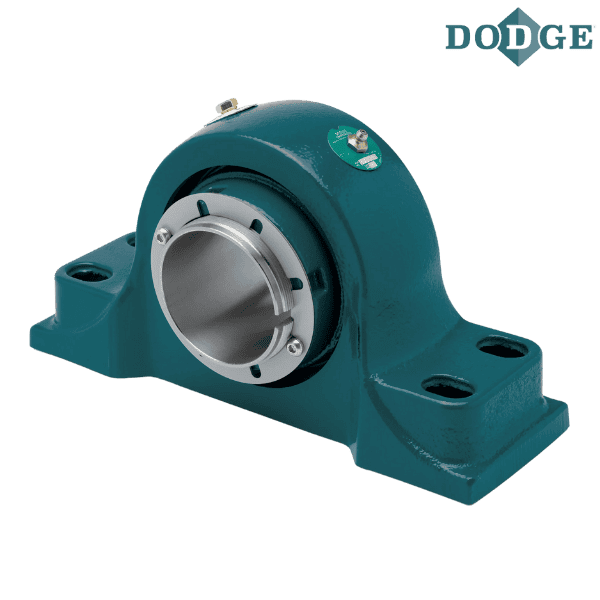

071223 DODGE - EP4B-IP-208RE

Brand - DODGE
Item Number - 071223 DODGE - EP4B-IP-208RE
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Trident Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.5
Part Name - EP4B-IP-208RE

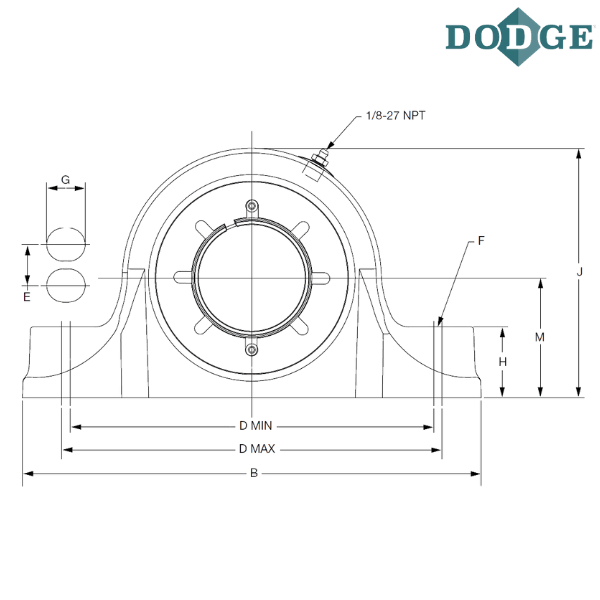

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 10.5
Width (C) inch - 3.49
Bolt to Bolt Minimum Distance (D min) inch - 8.31
Bolt to Bolt Maximum Distance (D max) inch - 8.69
E (inch) - 1.87
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.87
H (inch) - 1.63
Overall Height (J) inch - 5.72
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
S (inch) - 2.21
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
