071195 DODGE - EP2B-IP-208LE

Brand - DODGE
Item Number - 071195 DODGE - EP2B-IP-208LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.5
Part Name - EP2B-IP-208LE

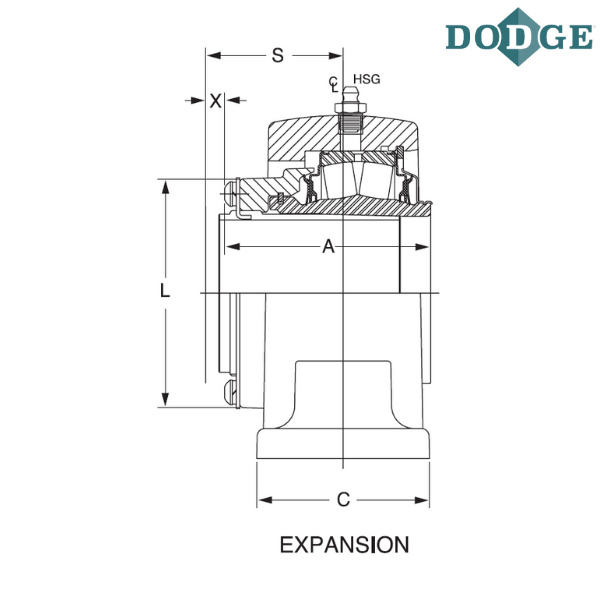

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 10.5
Width (C) inch - 2.87
Bolt to Bolt Minimum Distance (D min) inch - 8.38
Bolt to Bolt Maximum Distance (D max) inch - 8.62
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.63
Overall Height (J) inch - 5.71
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
S (inch) - 2.22
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
