071131 DODGE - EP2B-IP-207R

Brand - DODGE
Item Number - 071131 DODGE - EP2B-IP-207R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22213
Shaft Size (inch) - 2.4375
Part Name - EP2B-IP-207R

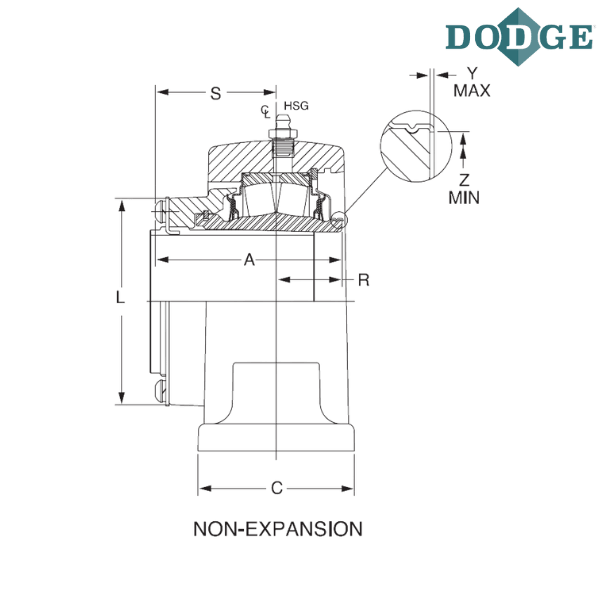

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 10.5
Width (C) inch - 2.87
Bolt to Bolt Minimum Distance (D min) inch - 8.38
Bolt to Bolt Maximum Distance (D max) inch - 8.62
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.63
Overall Height (J) inch - 5.71
L (inch) - 3.88
Base to Center Height (M) inch - 2.75
R (inch) - 1.2
S (inch) - 2.22
Y (inch) - 0.03
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
