071122 DODGE - EP2B-IP-108R

Brand - DODGE
Item Number - 071122 DODGE - EP2B-IP-108R
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (inch) - 1.5
Part Name - EP2B-IP-108R

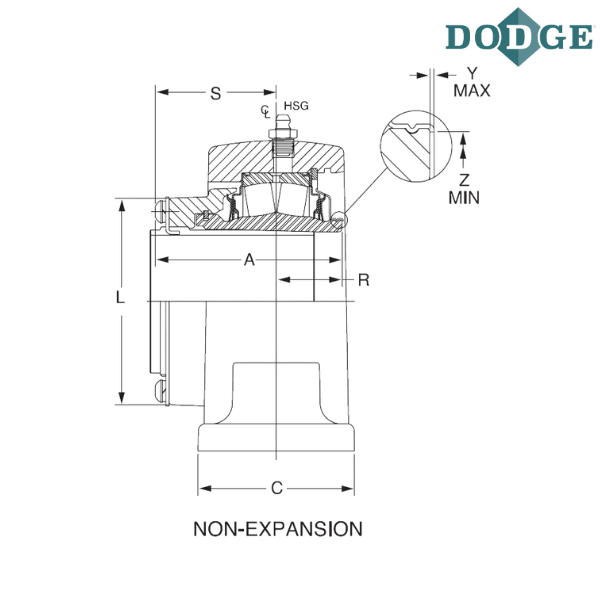

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 7.88
Width (C) inch - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 6.13
Bolt to Bolt Maximum Distance (D max) inch - 6.38
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 1.25
Overall Height (J) inch - 4.25
L (inch) - 3
Base to Center Height (M) inch - 2.125
R (inch) - 0.98
S (inch) - 1.83
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
