071109 DODGE - P2B532-ISN-140MLS

Brand - DODGE
Item Number - 071109 DODGE - P2B532-ISN-140MLS
Category - ISN Plummer Blocks With Labyrinth Seals (Expansion Bearing)
Series - 532
Shaft Size (mm) - 140
Description - P2B532-ISN-140MLS

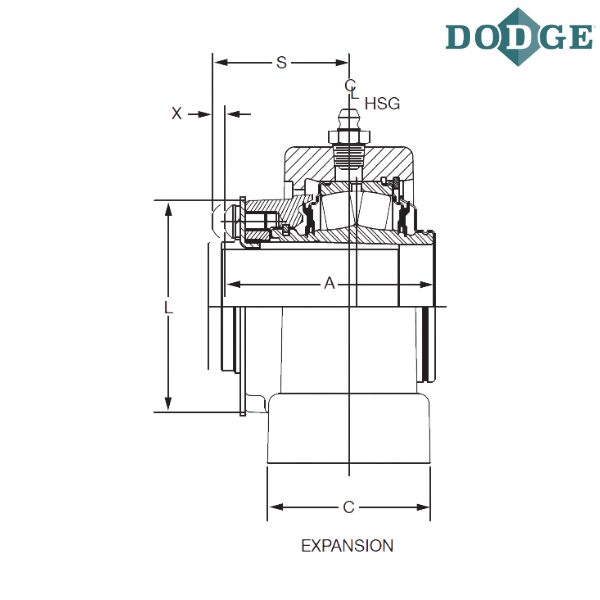

Length Through Bore (A) mm - 179.8
Overall Length (B) mm - 560
Width (C) mm - 160
Bolt to Bolt Minimum Distance (D min) mm - 463
Bolt to Bolt Maximum Distance (D max) mm - 477
F-Bolt Diameter - M30
G (mm) - 42
H (mm) - 60
Overall Height (J) mm - 345.3
L (mm) - 260.4
Base to Center Height (M) mm - 170
S (mm) - 117.4
Total Expansion (X) mm - 16.8

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
M - Size in millimeters otherwise 1 10/16”
L - Expansion (Non-Locating)
S - Labyrinth Seal

** Images are for representation purposes only
