071107 DODGE - P2B532-ISN-140MLR

Brand - DODGE
Item Number - 071107 DODGE - P2B532-ISN-140MLR
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22232
Shaft Size (mm) - 140
Description - P2B532-ISN-140MLR
Length Through Bore (A) mm - 179.8
Overall Length (B) mm - 560
Width (C) mm - 160
Bolt to Bolt Minimum Distance (D min) mm - 463
Bolt to Bolt Maximum Distance (D max) mm - 477
F-Bolt Diameter - M30
G (mm) - 42
H (mm) - 60
Overall Height (J) mm - 345.3
L (mm) - 260.4
Base to Center Height (M) mm - 170
S (mm) - 117.4
T (mm) - 16.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
R - Trident rubbing seal

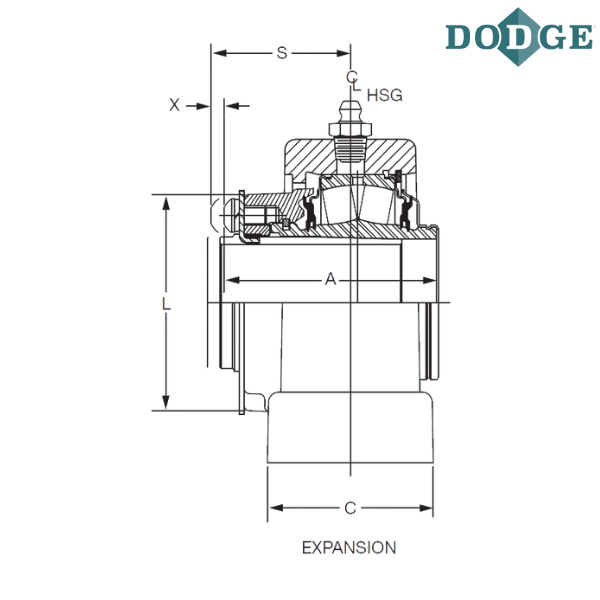

** Images are for representation purposes only
