Description
Brand - DODGE
Item Number - 071093 DODGE - INS-ISN-70MS
Category - ISN Bearing Inserts (Labyrinth Seal)
Shaft Size (mm) - 70
Description - INS-ISN-70MS
Overall Length (A) mm - 130
B (mm) - 32.3
Overall Width (C) mm - 88.9
D (mm) - 31
E (mm) - 106.7
Notes :
INS - Insert
ISN - Style w/Imperial locking mechanism
M - Size in millimeters otherwise 1 10/16”
S - Labyrinth Seal

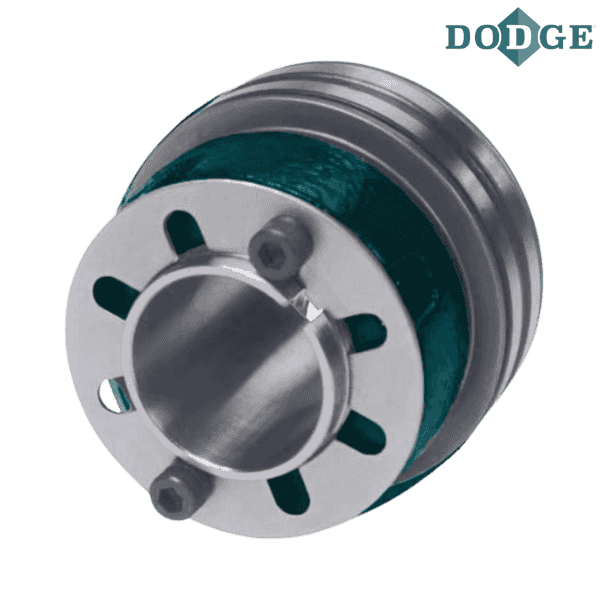

** Images are for representation purposes only
