Description
Brand - DODGE

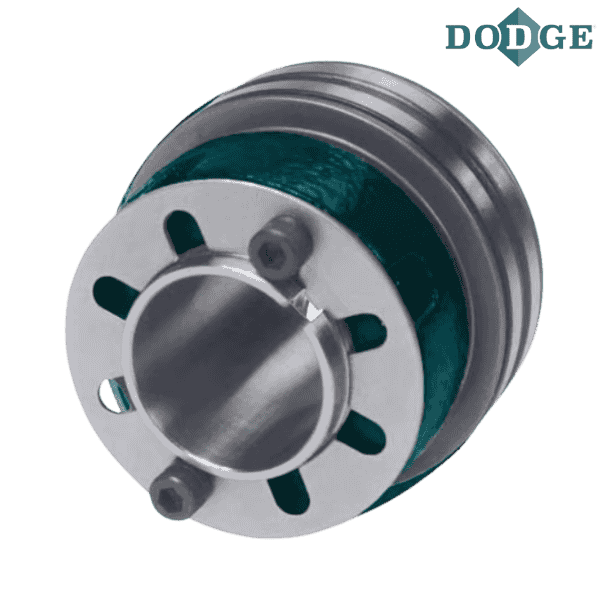

Item Number - 071090 DODGE - INS-ISN-55MS
Category - ISN Bearing Inserts (Labyrinth Seal)
Shaft Size (mm) - 55
Description - INS-ISN-55MS
Overall Length (A) mm - 100
B (mm) - 26.3
Overall Width (C) mm - 77
D (mm) - 26.7
E (mm) - 87.1
Notes :
INS - Insert
ISN - Style w/Imperial locking mechanism
M - Size in millimeters otherwise 1 10/16”
S - Labyrinth Seal
** Images are for representation purposes only
