Description
Brand - DODGE
Item Number - 071088 DODGE - INS-ISN-45MS
Category - ISN Bearing Inserts (Labyrinth Seal)
Shaft Size (mm) - 45
Description - INS-ISN-45MS
Overall Length (A) mm - 90
B (mm) - 24
Overall Width (C) mm - 72.6
D (mm) - 24.8
E (mm) - 81
Notes :
INS - Insert
ISN - Style w/Imperial locking mechanism
M - Size in millimeters otherwise 1 10/16”
S - Labyrinth Seal

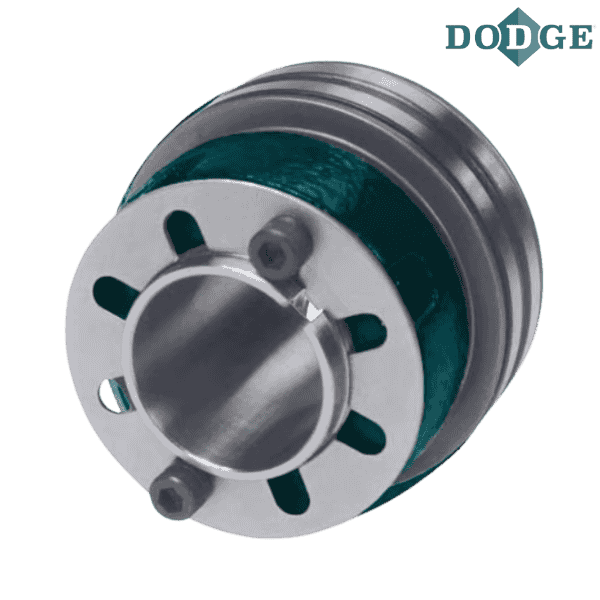

** Images are for representation purposes only
