Description
Brand - DODGE
Item Number - 071066 DODGE - P2B526-ISN-115MLS
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (mm) - 115
Description - P2B526-ISN-115MLS

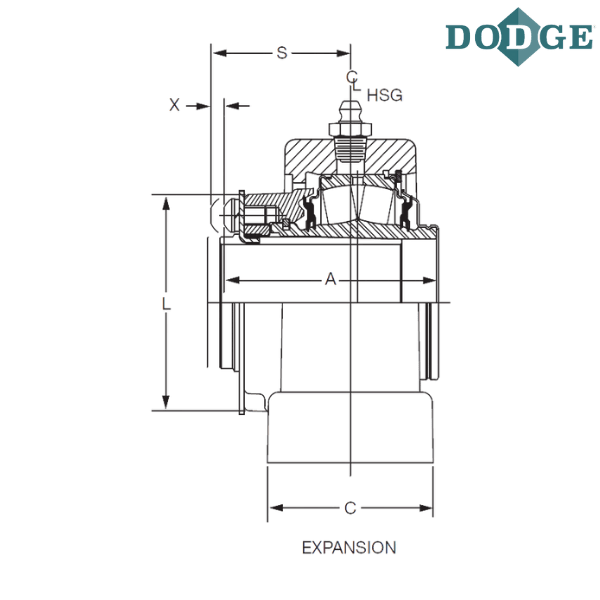

Length Through Bore (A) mm - 152
Overall Length (B) mm - 444.8
Width (C) mm - 130
Bolt to Bolt Minimum Distance (D min) mm - 359.6
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
G (mm) - 41.7
H (mm) - 50
Overall Height (J) mm - 292.8
L (mm) - 191.8
Base to Center Height (M) mm - 150
S (mm) - 103.2
T (mm) - 10
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
S - Labyrinth seal
** Images are for representation purposes only
