Description
Brand - DODGE
Item Number - 071062 DODGE - P2B519-ISN-085MLS
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (mm) - 85
Description - P2B519-ISN-085MLS

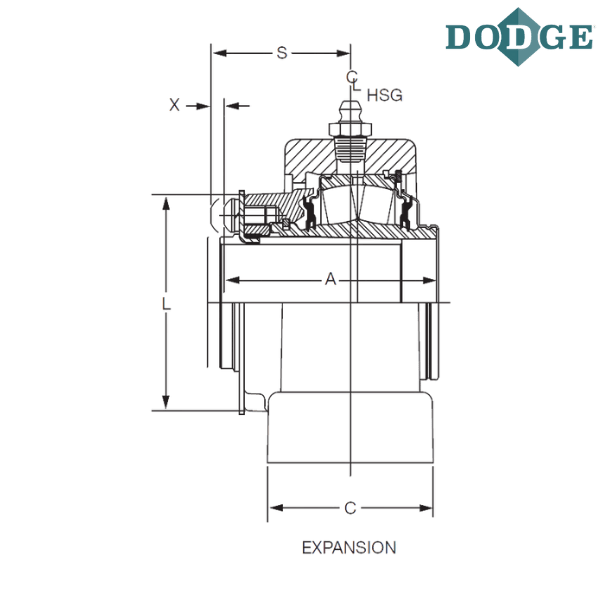

Length Through Bore (A) mm - 106
Overall Length (B) mm - 345
Width (C) mm - 100.2
Bolt to Bolt Minimum Distance (D min) mm - 264.2
Bolt to Bolt Maximum Distance (D max) mm - 296.1
F-Bolt Diameter - M20
G (mm) - 37.9
H (mm) - 35
Overall Height (J) mm - 205.2
L (mm) - 124.7
Base to Center Height (M) mm - 112
S (mm) - 71.4
T (mm) - 7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
S - Labyrinth seal
** Images are for representation purposes only
