071061 DODGE - P2B518-ISN-080MLS

Brand - DODGE
Item Number - 071061 DODGE - P2B518-ISN-080MLS
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Labyrinth Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (mm) - 80
Description - P2B518-ISN-080MLS

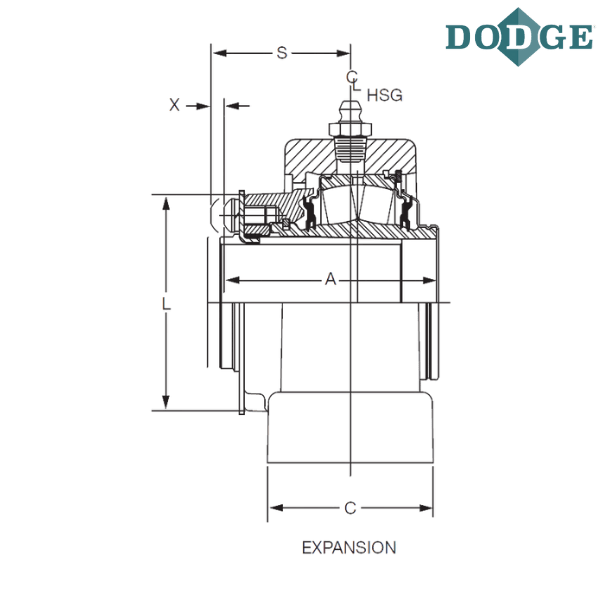

Length Through Bore (A) mm - 106
Overall Length (B) mm - 345.3
Width (C) mm - 100.3
Bolt to Bolt Minimum Distance (D min) mm - 270
Bolt to Bolt Maximum Distance (D max) mm - 293.7
F-Bolt Diameter - M20
G (mm) - 34
H (mm) - 35
Overall Height (J) mm - 196.7
L (mm) - 124.7
Base to Center Height (M) mm - 100
S (mm) - 71.4
T (mm) - 7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
L - Expansion
S - Labyrinth seal

** Images are for representation purposes only
