071036 DODGE - P2B509-ISN-040MFS

Brand - DODGE
Item Number - 071036 DODGE - P2B509-ISN-040MFS
Category - IMPERIAL - ISN Metric Pillow Block 2-Bolt with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22209
Shaft Size (mm) - 40
Description - P2B509-ISN-040MFS

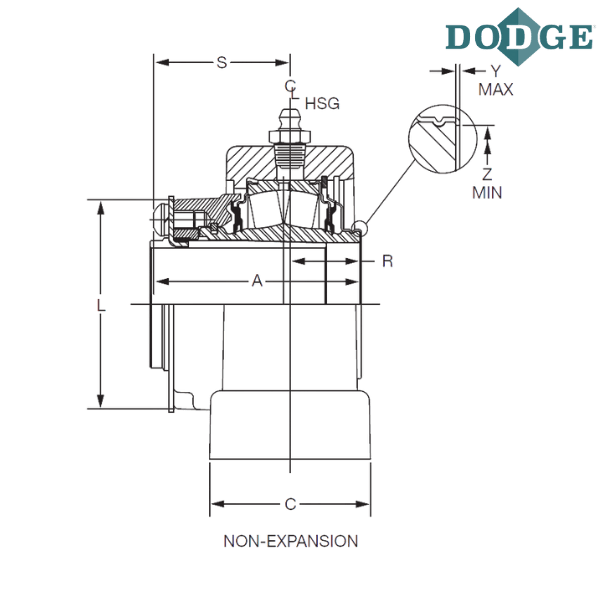

Length Through Bore (A) mm - 71.4
Overall Length (B) mm - 206.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 155
Bolt to Bolt Maximum Distance (D max) mm - 174.6
F-Bolt Diameter - M12
G (mm) - 24.8
H (mm) - 25
Overall Height (J) mm - 114
L (mm) - 74.7
Base to Center Height (M) mm - 60
R (mm) - 20.6
S (mm) - 50.8
T (mm) - 6.5
Y (mm) - 0.51
Z (mm) - 52.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2 Bolt Base
5XX - for interchangeable SAF style housings
ISN - Imperial SN
M - Metric
F - Non-expansion
S - Labyrinth seal

** Images are for representation purposes only
